Ignition Coil: Service and Repair

IGNITION COIL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the plug hole plate.

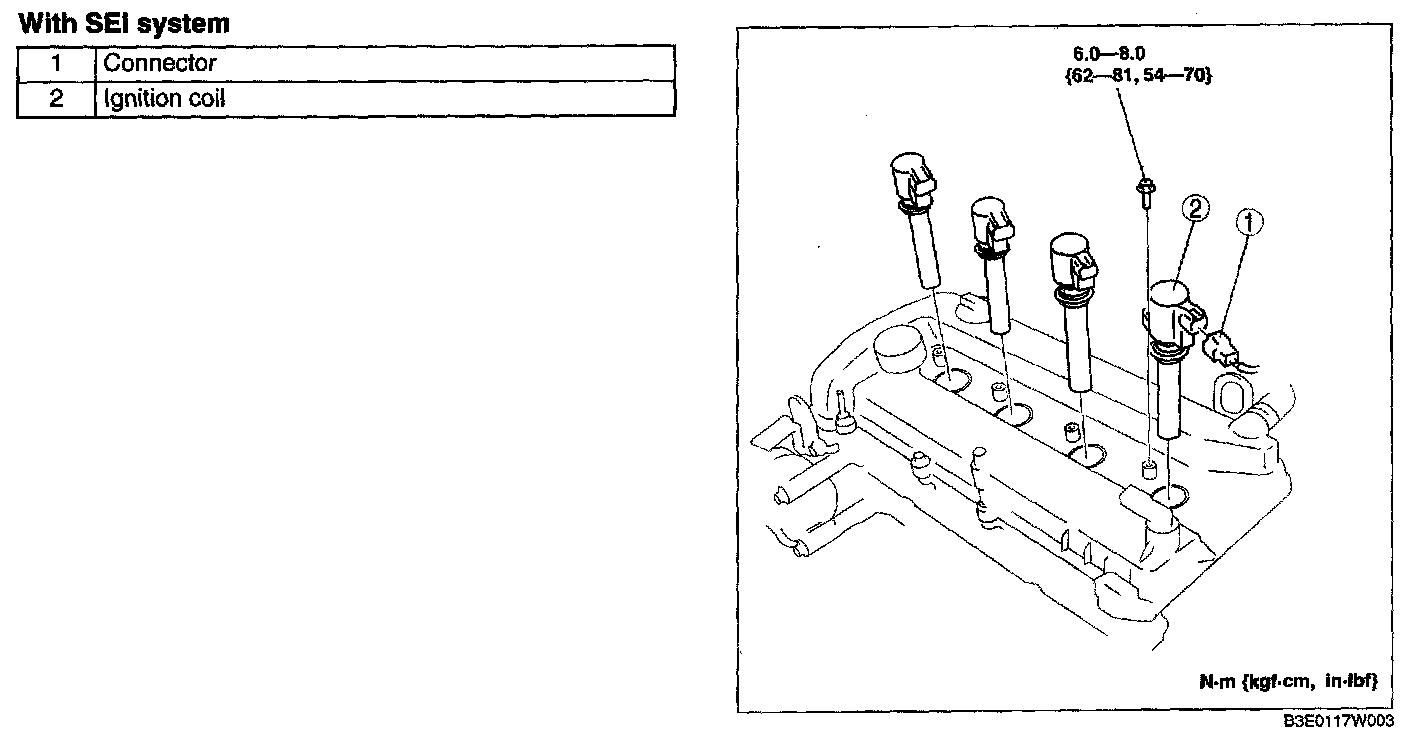

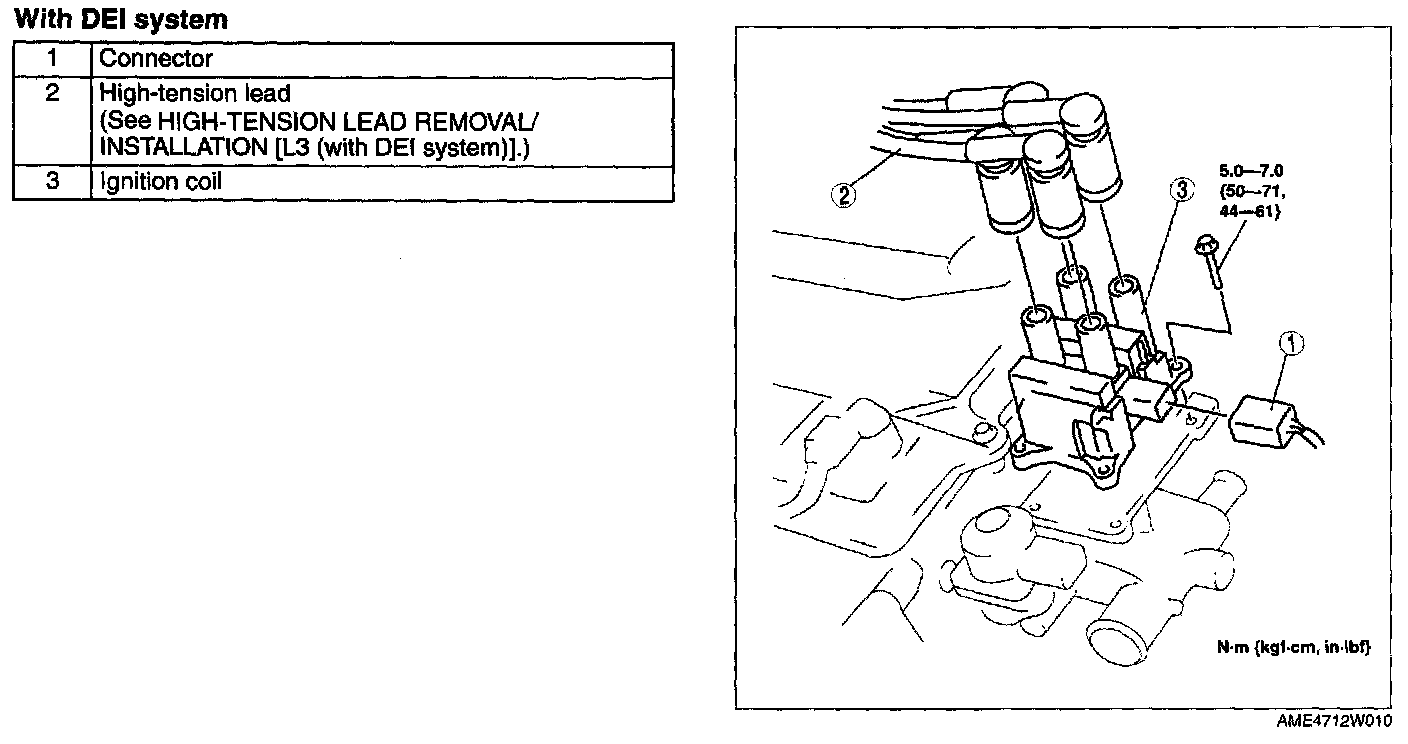

3. Remove in the order indicated in the table.
4. install in the reverse order of removal.
