Pressure Plate

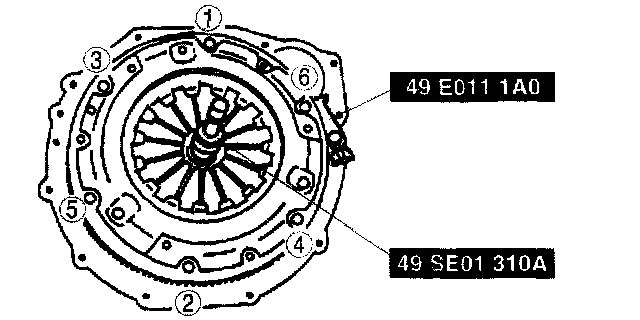

Clutch CoverG35M-R manual transaxle models Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque
25 - 33 Nm (2.6 - 3.3 kgf-m, 19 - 24 ft. lbs.)

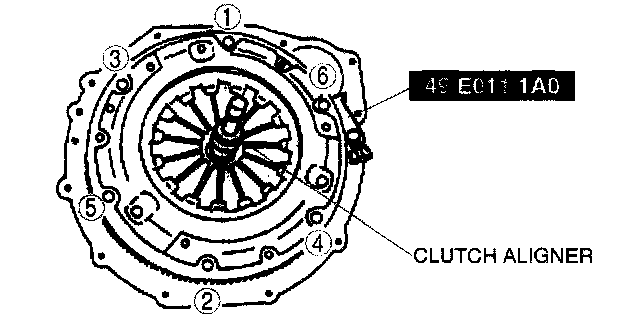

A65M-R manual transaxle models Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque
25 - 33 Nm (2.6 - 3.3 kgf-m, 19 -24 ft. lbs.)
