Camshaft Bearing
Camshaft Bearing
Camshaft Cap Bolt

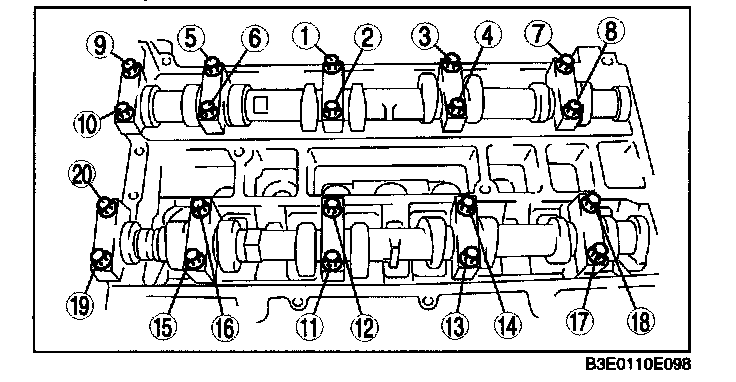

Tighten the camshaft cap bolt in the order shown two steps.
Tightening torque
(1) 5.0-9.0 N-m (51.0-91.7 kgf-cm, 44.3-79.5 in-lbf)
(2) 14-17 N-m (1.43-1.73 kgf-m, 10.4-12.5 ft-lbf)
Camshaft Cap Bolt
Tighten the camshaft cap bolt in the order shown two steps.
Tightening torque
(1) 5.0-9.0 N-m (51.0-91.7 kgf-cm, 44.3-79.5 in-lbf)
(2) 14-17 N-m (1.43-1.73 kgf-m, 10.4-12.5 ft-lbf)
