Valve Cover

Valve Cover Bolts

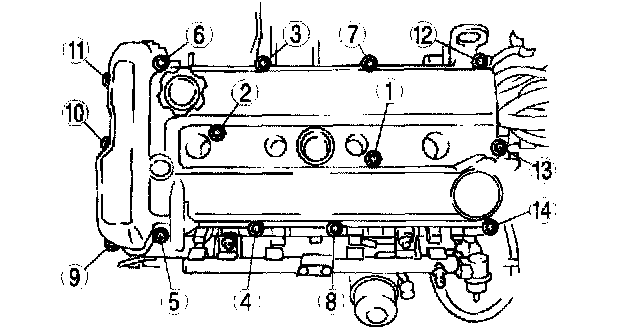

Tightening bolts in order shown
Tightening torque 8.0 - 11.5 Nm (81.6 - 117.2 kgf-cm, 70.9 - 101.7 inch lbs.)
