Lifter / Lash Adjuster, Valve

TAPPET INSPECTION

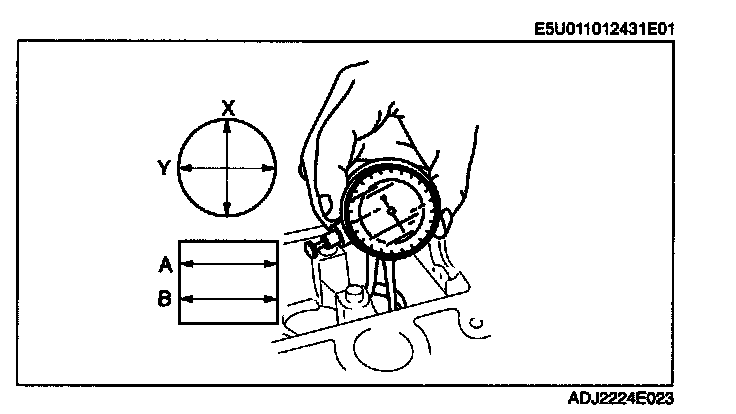

Tappet bore diameter

Standard 31.000-31.030 mm (1.2205-1.2216 In)

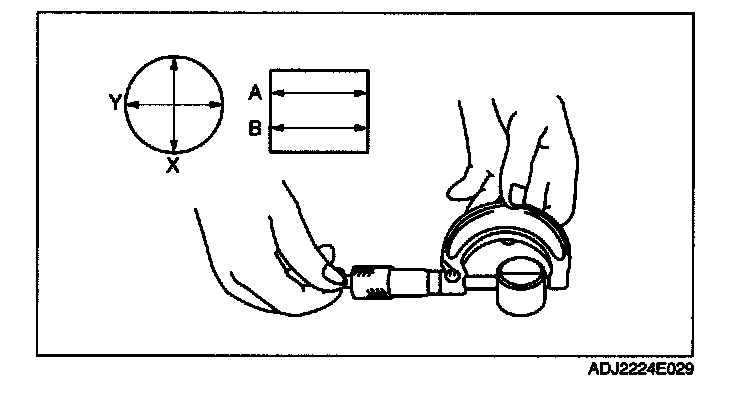

Tappet diameter

Standard 30.970-30.980 mm (1.2193-1.2196 In)

Tappet-to-Tappet bore oil clearance

Standard 0.02-0.06 mm (0.0008-.0023 in)
Maximum 0.15 mm (0.006 in)
