Lateral Stabilizer Rod: Service and Repair

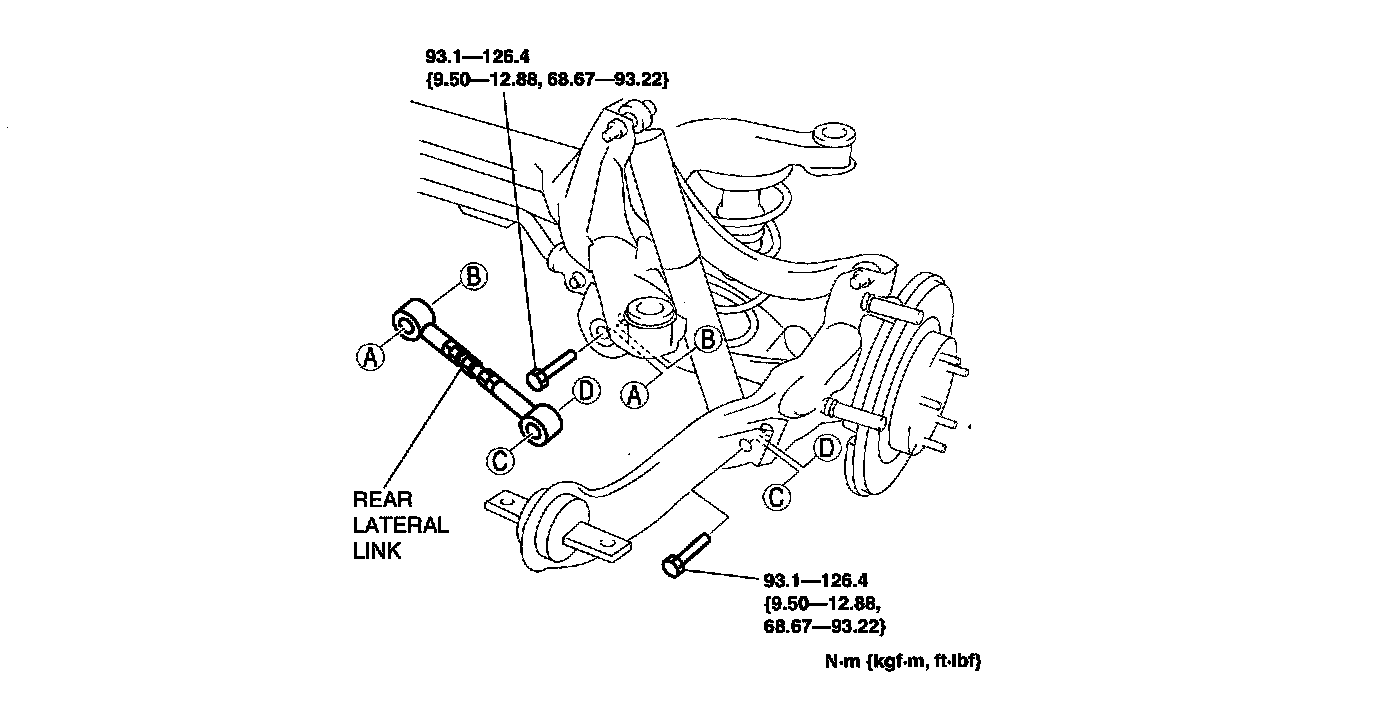

REAR LATERAL LINK REMOVAL/INSTALLATION 1.
Remove the rear lateral link.
Caution: ^
When working near left rear
suspension, avoid any impact to the fuel tank.
2.

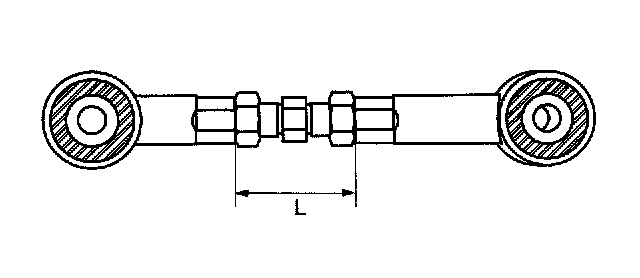

Measure the length L shown in the figure for proper installation.
3.
Temporarily loosen a locknut of the rear lateral link.
4.
Install the rear lateral link.
5.
Inspect the rear wheel alignment.
