Flywheel: Testing and Inspection

FLYWHEEL INSPECTION

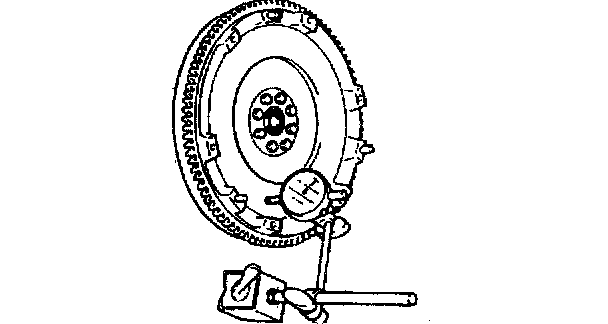

1. Install a dial gauge on the cylinder block.

2. Measure the flywheel runout using a dial gauge.
^ If the runout is excessive, replace the flywheel.
Runout
G35M-R manual transaxle models 0.1 mm (0.004 inch) maximum
A65M-R manual transaxle models 0.05 mm (0.002 inch) maximum
