5TH Gear Thrust Clearance Preinspection

5TH GEAR THRUST CLEARANCE PREINSPECTION





1. Remove the rear cover.

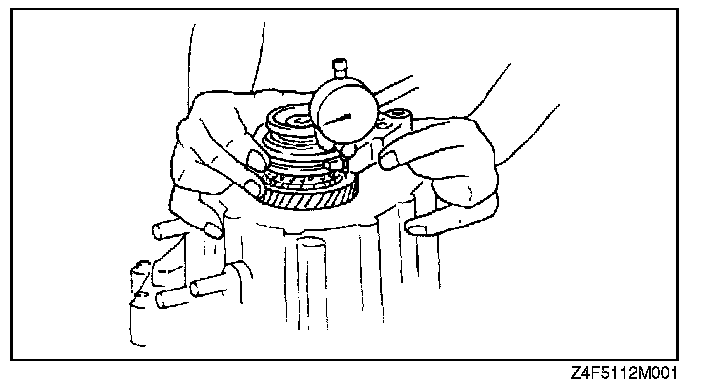

2. Measure the 5th gear thrust clearance using a dial indicator.
^ If the clearance exceeds the maximum, check the contact surfaces of 5th gear and the clutch hub. Replace worn or damaged parts.

Clearance:
0.100 - 0.220 mm (0.0040 - 0.0086 in)
Maximum:
0.270 mm (0.0106 in)
