Secondary 4TH Gear and Bearing Assembly Note

Secondary 4th Gear and Bearing Assembly Note

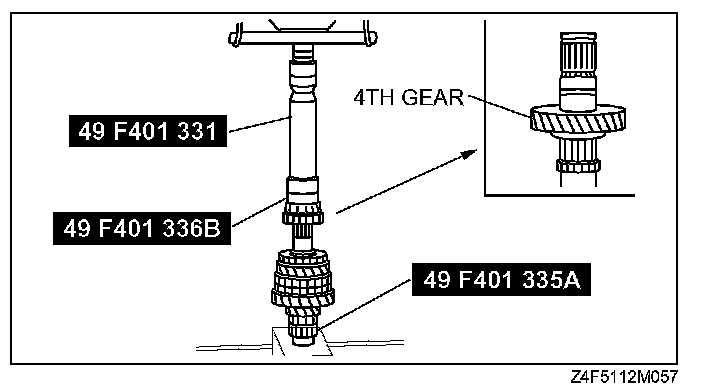

1. Install the secondary 4th gear and the bearing using the SST.

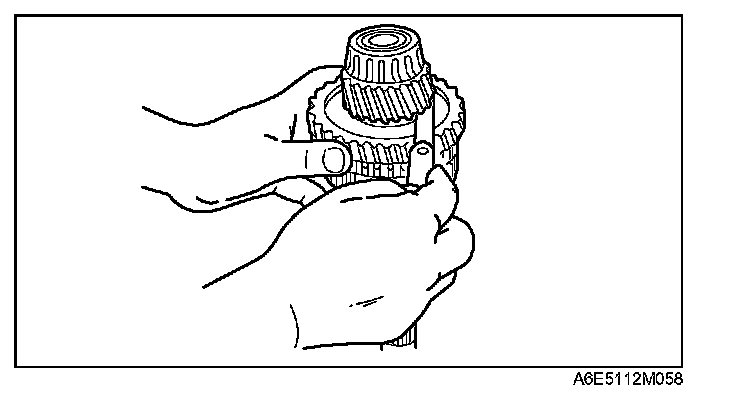

2. Measure the clearance between the 1st gear and the differential drive gear.

Clearance:
0.05 - 0.28 mm (0.002 - 0.011 in)
Maximum:
0.33 mm (0.013 in)





3. Measure the clearance between the 2nd gear and the secondary 3rd gear.
^ If not as specified, reassemble the secondary shaft component.

Clearance:
0.18 - 0.46 mm (0.007 - 0.018 in)
Maximum:
0.51 mm (0.020 in)
