Clutch Hub Component Inspection
Clutch Hub Component Inspection1. Inspect the clutch hub sleeve and hub operation.
^ If there is malfunction, replace parts as necessary.
2. Inspect the gear teeth for damage, wear, and cracks.
^ If there is malfunction, replace parts as necessary.
3. Inspect the synchronizer keys for damage, wear, and cracks.
^ If there is malfunction, replace parts as necessary.

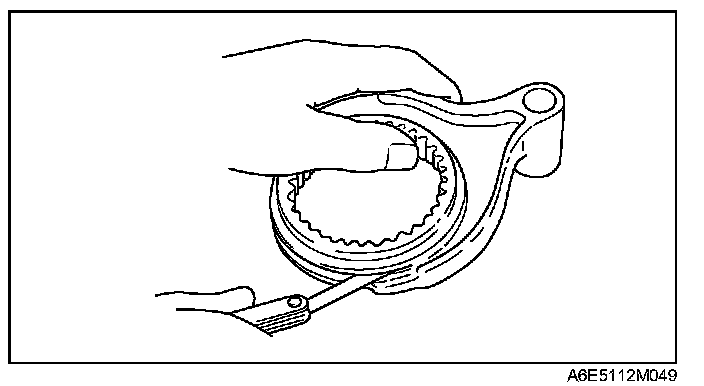

4. Measure the clearance between the hub sleeve and shift fork.
^ If the clearance exceeds the maximum, replace the hub sleeve and shift fork as a set.
Standard clearance:
0.10 - 0.45 mm (0.004 - 0.017 in)
Maximum clearance:
0.95 mm (0.037 in)
