Power Window Motor: Testing and Inspection

POWER WINDOW MOTOR INSPECTION

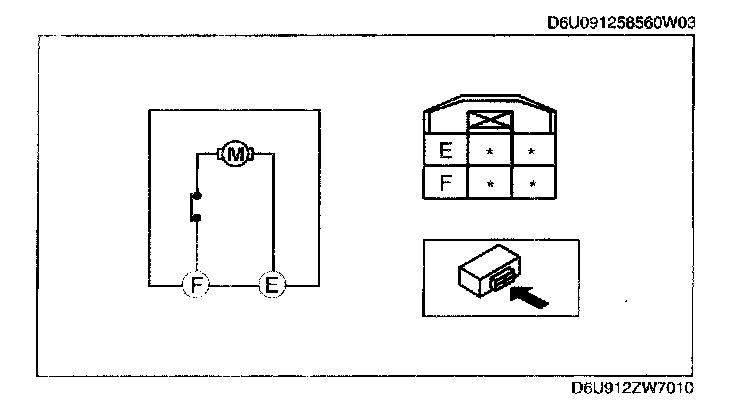

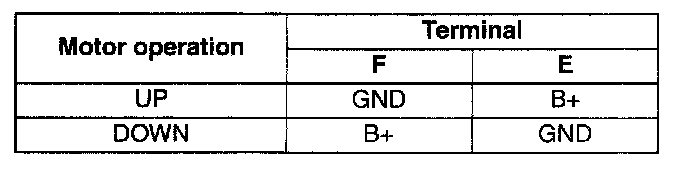

1. Apply battery positive voltage to the power window motor terminals and inspect the power window motor operation.
- If not as specified, replace the power window motor
