B2300 L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Smart Junction Box (SJB)
Smart Junction Box (SJB)

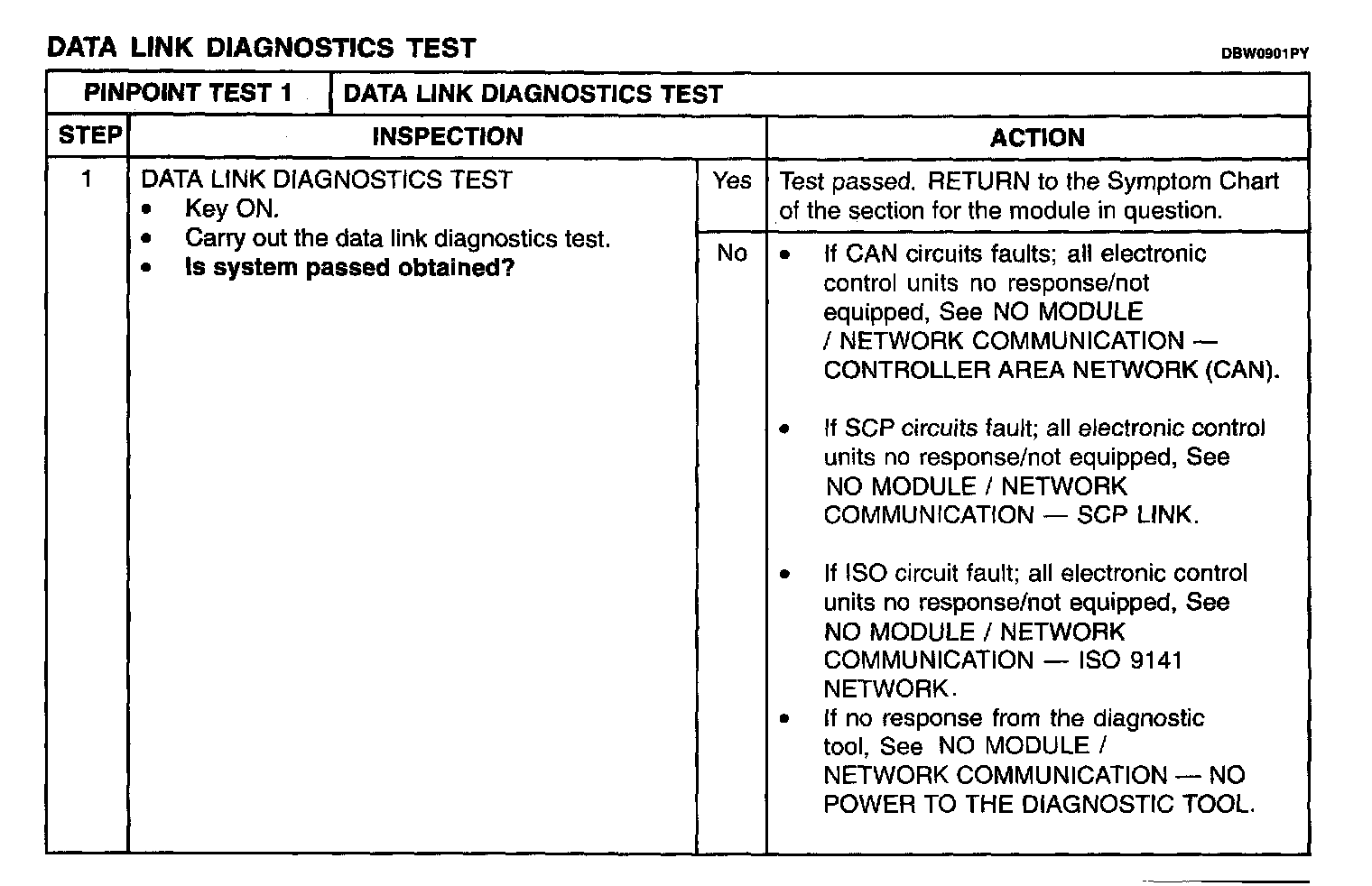

Step 1:
