Outside Mirror
OUTSIDE MIRROR REMOVAL / INSTALLATION 1.
Remove the front door
trim panel.
2.
Remove the outside mirror access water shield.
3.
If necessary, remove the speaker.
4.
If equipped, disconnect outside mirror electrical connector.
5.

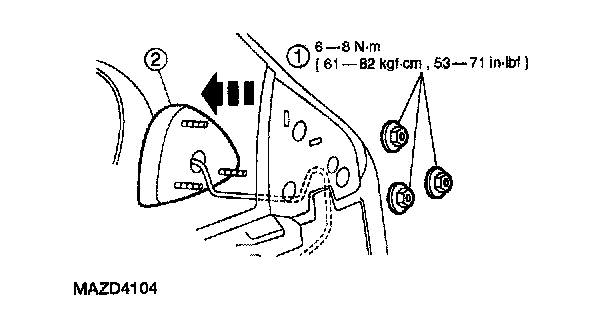

Remove the nuts (1).
NOTE: Feed the outside mirror wiring through the opening in the front door.
6.
Remove the outside mirror (2).
7.
Install in reverse order of removal.
