Blower Motor: Service and Repair
BLOWER MOTOR REMOVAL / INSTALLATION 1.
Disconnect the connector from the cruise control servo.
2.
Remove the screw and reposition the cruise control servo.
3.

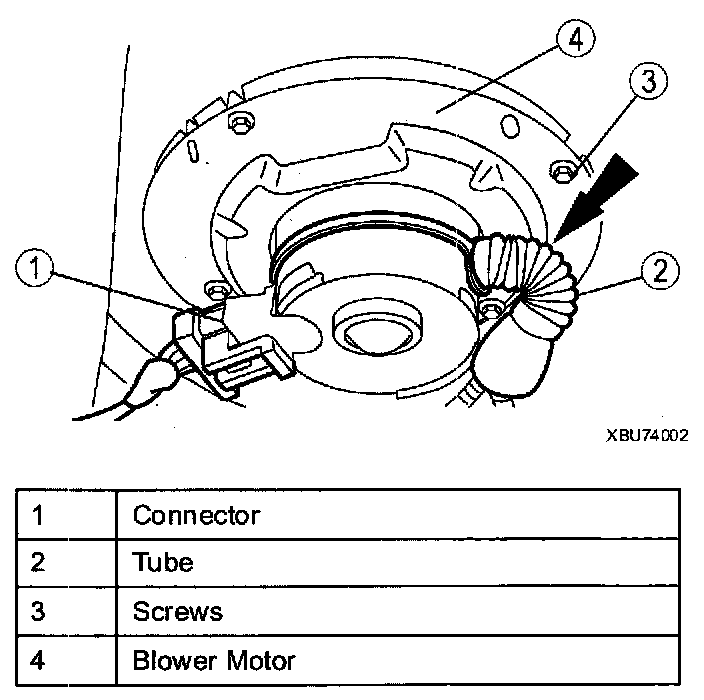

Remove in order shown figure.
4.

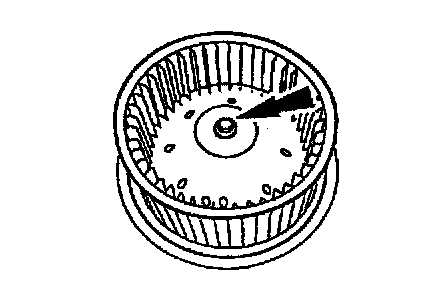

Remove the retaining clip and wheel from
blower motor.
5.
Install in reverse order of removal.
