Dimmer Switch: Service and Repair

DIMMER SWITCH REMOVAL / INSTALLATION

1. Remove the instrument cluster finish panel.

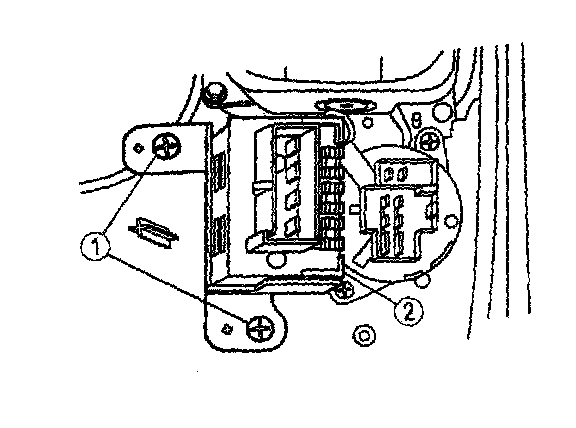

2. Remove in the order shown in figure.
a. Screws
b. Dimmer switch

3. Install in reverse order of removal.

Tightening torque: 2 - 3 N.m { 20 - 31 kgf.cm, 18-27 in.lbf}
