Fog/Driving Lamp: Service and Repair
FOG LAMP ASSEMBLY REMOVAL / INSTALLATION 1.
Remove the front bumper valance panel; see VALANCE PANEL REMOVAL / INSTALLATION.
2.

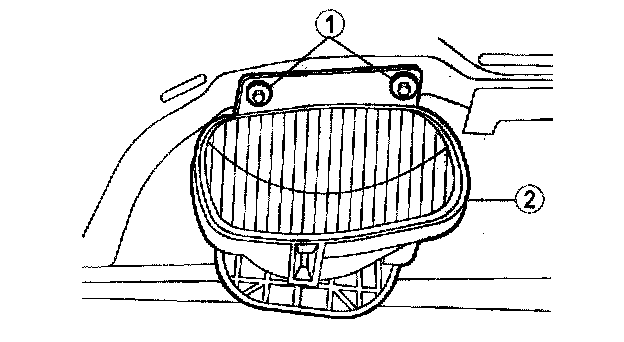

Remove the fog lamp assembly.
1.
Remove the bolts.
2.
Remove the fog lamp assembly.
3.
To install, reverse the removal procedure.
Tightening torque:
4 - 6 N.m {41 - 61 kgf.cm, 36 - 53 in.lbf}
