Map Light: Service and Repair
MAP/DOME LAMP ASSEMBLY REMOVAL / INSTALLATION 1.
Disconnect the negative battery cable.
2.

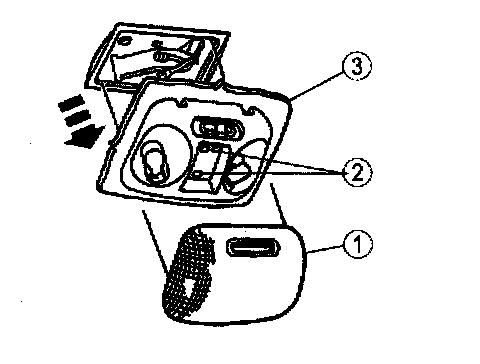

Remove in order shown in figure.
1.
Lens
2.
Bulb(s)
3.
Map / dome lamp assembly
3.
Install in reverse order of removal.
Tightening torque:
1.6 - 1.8 N.m {16.3 - 18.4 kgf.cm, 15 - 17 in.lbf}
