Combination Switch: Service and Repair

MULTI-FUNCTION SWITCH REMOVAL / INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the ignition lock cylinder.
3. If equipped, remove the tilt wheel handle.
4. Remove the upper and lower steering column shrouds.

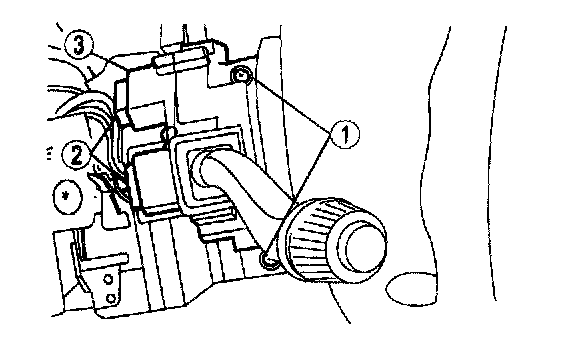

5. Remove in order shown in figure.
1. Screws
2. Connectors
3. Switch

6. Install in reverse order of removal.

Tightening torque: 2 - 3 N.m {20 - 31 kgf-cm, 18 - 27 in.lbf}
