Combination Switch: Testing and Inspection
MULTI-FUNCTION SWITCH - COMPONENT TEST 1.

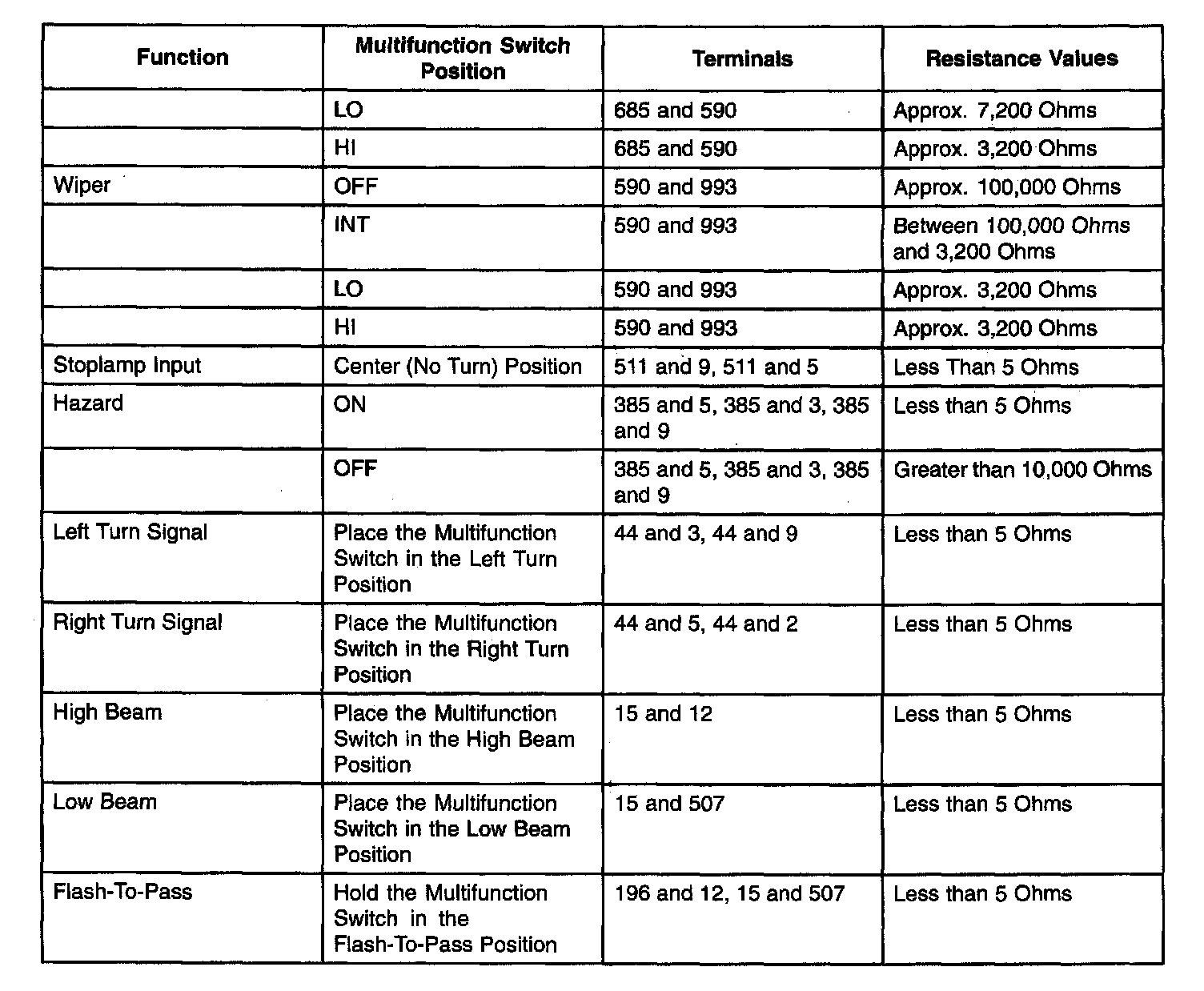

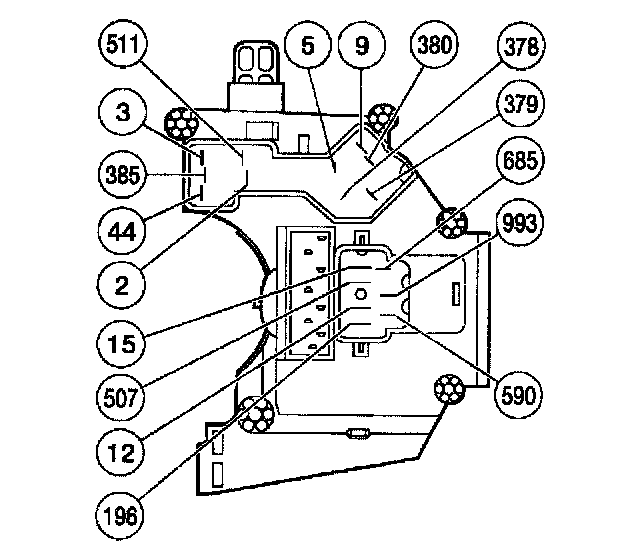

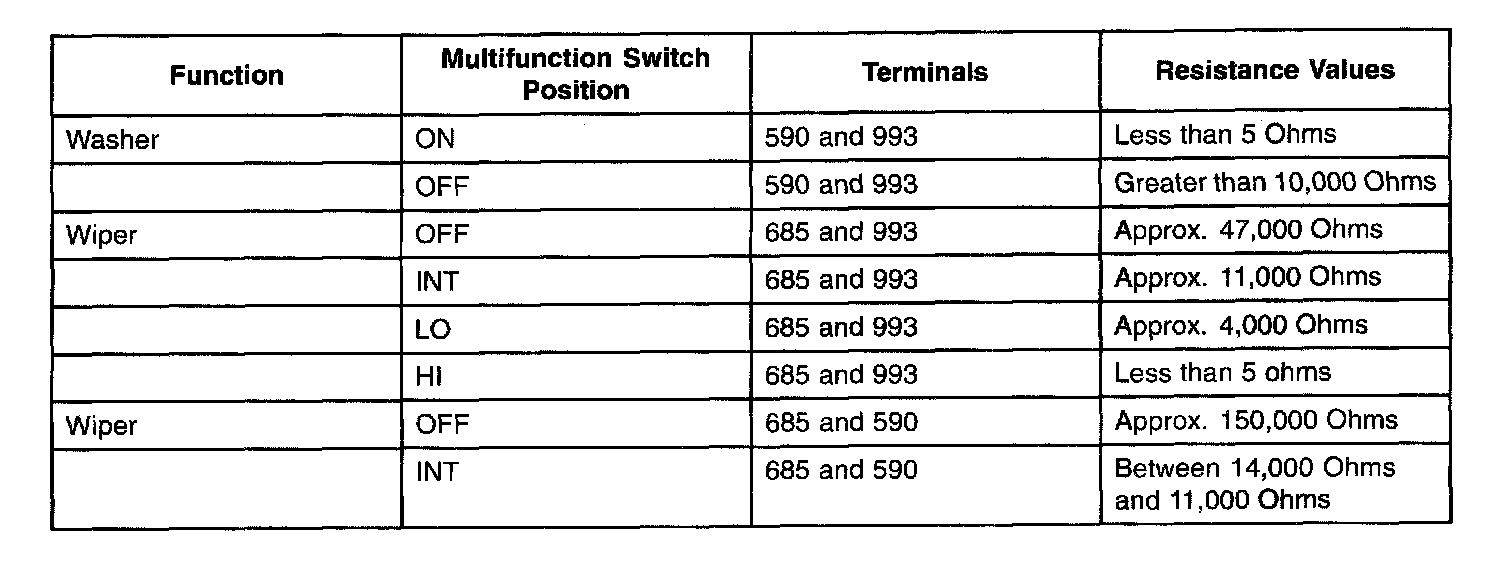

Measure the resistance between the multifunction switch terminals.
If the resistances are as specified, the multifunction switch is OK. Return the multifunction switch to the vehicle. Test the system for normal operation. If the resistances are not as specified, Replace the multifunction switch. Test the system for normal operation.
