Air Cleaner Housing: Service and Repair
ENGINE AIR CLEANER REMOVAL / INSTALLATION 1.

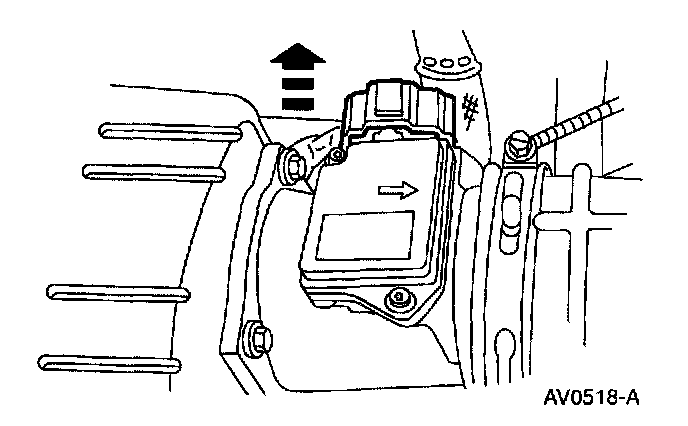

Remove the tube from the mass air flow (MAF) sensor.
2.
Disconnect the MAF sensor electrical connector.

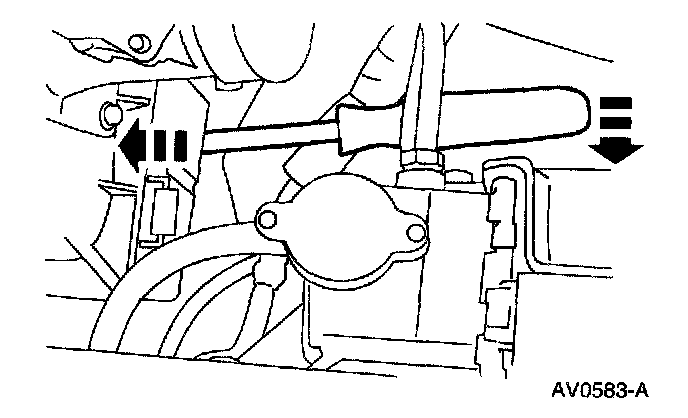

NOTE: Pry the engine air cleaner from the base.
3.

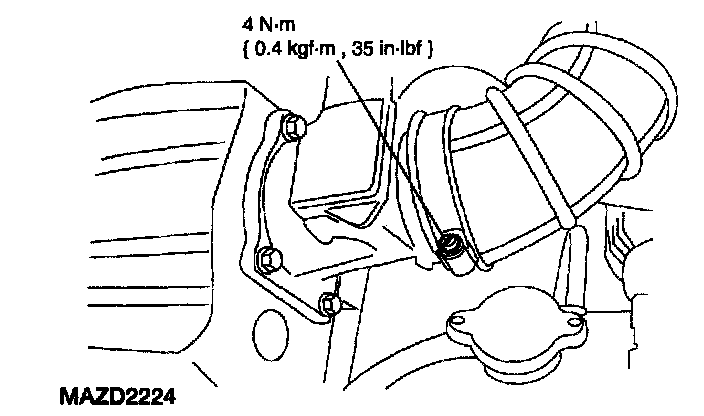

Remove the engine air cleaner assembly.
NOTE: Clean the engine air cleaner with a dry, clean cloth.
4.
To install, reverse the removal procedure.
