Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION

Removal

1. Disconnect the negative battery cable.
2. Raise and support the vehicle.

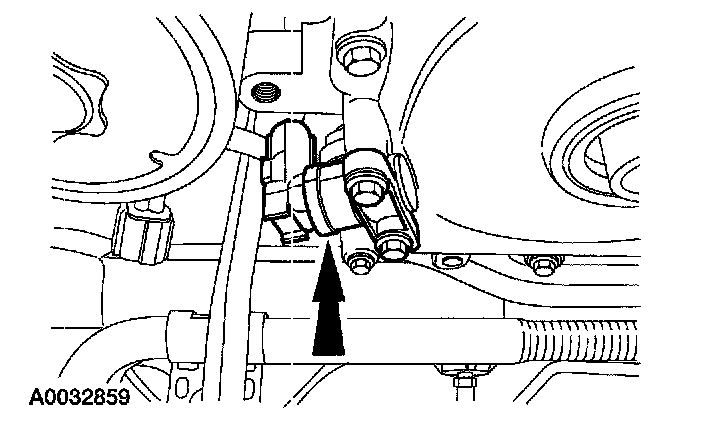

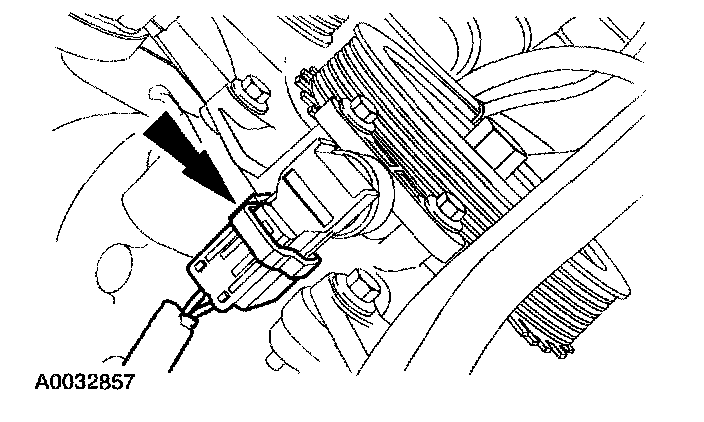

3. Disconnect the crankshaft position (CKP) sensor electrical connector.

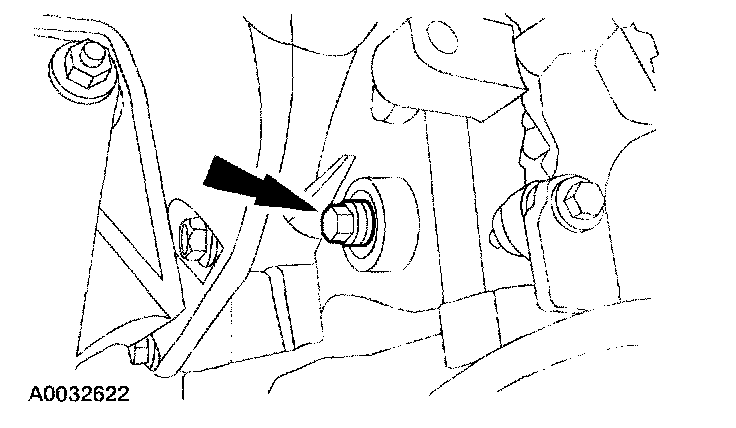

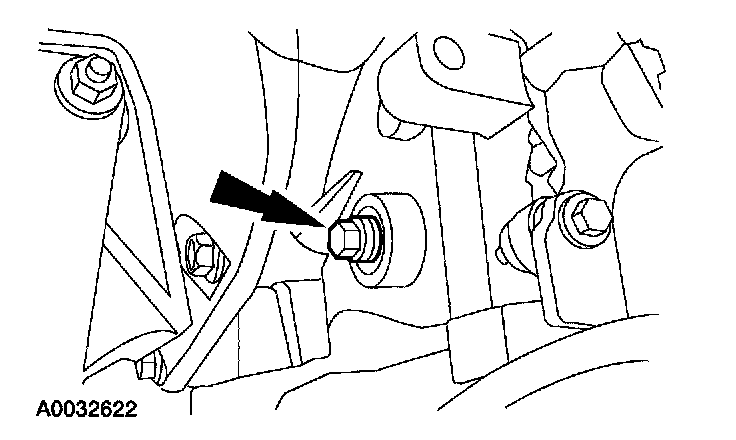

4. Remove the plug for the Crankshaft Timing Peg.

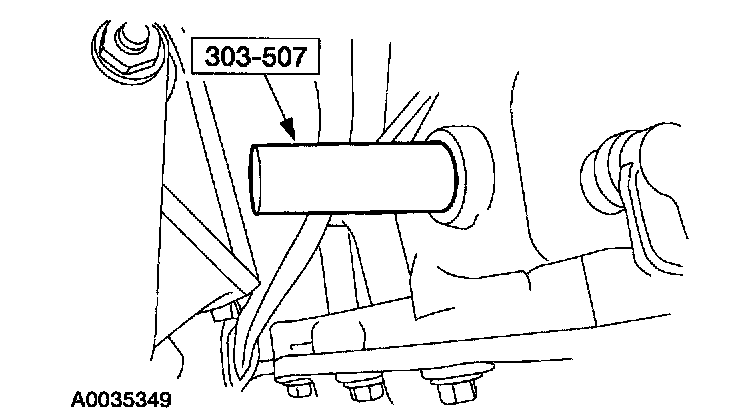

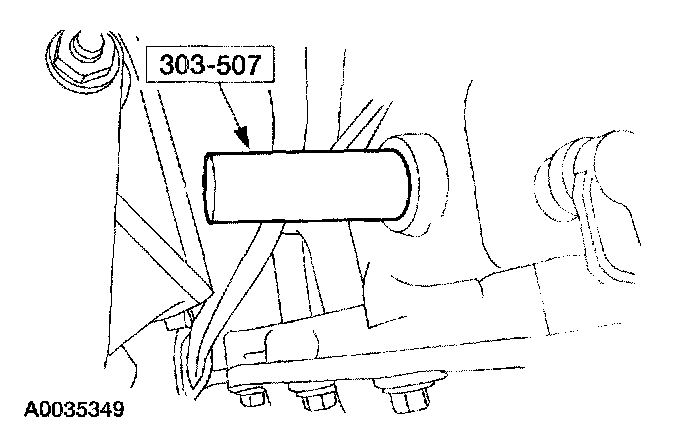

5. Install the special tool and turn the crankshaft pulley bolt to position the number one cylinder at top dead center.

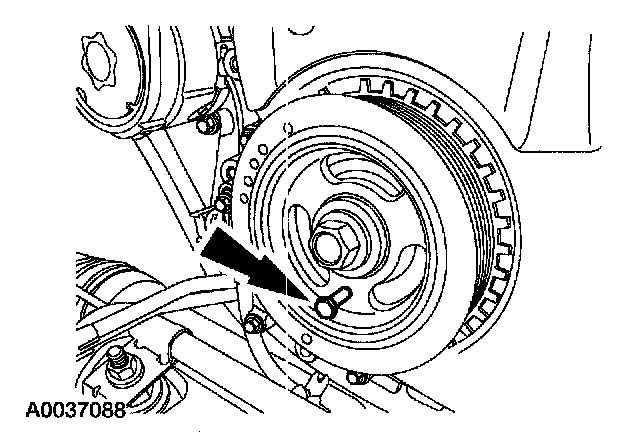

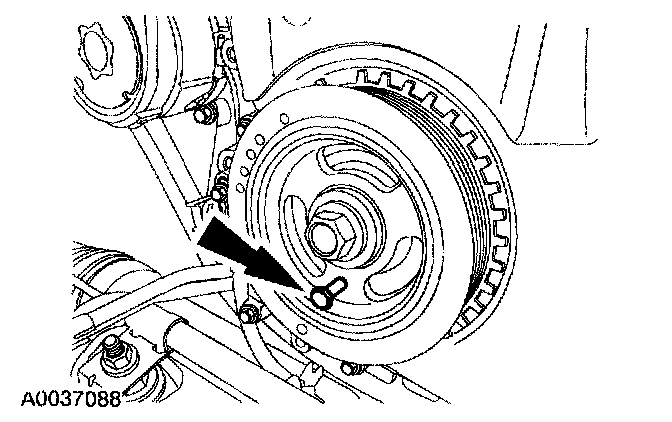

6. Install the M6 bolt (1F2012-428).
7. Remove the CKP.




8. Install an M6 bolt.

Installation




1. Install a new CKP, but do not tighten the bolts at this time.

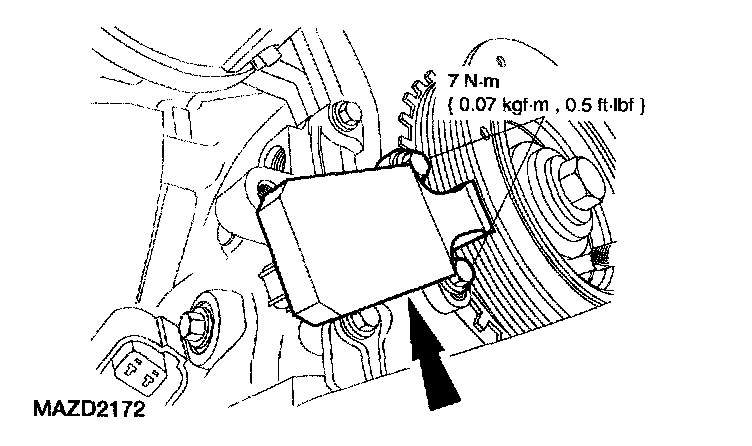

2. Adjust the CKP with the Crankshaft Position Sensor Alignment Jig and tighten the bolts.

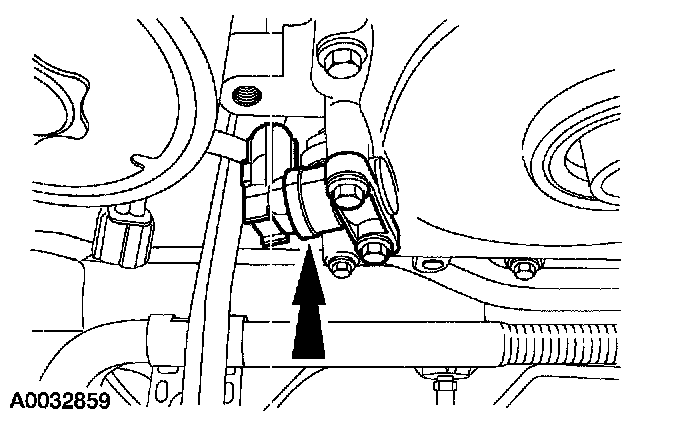

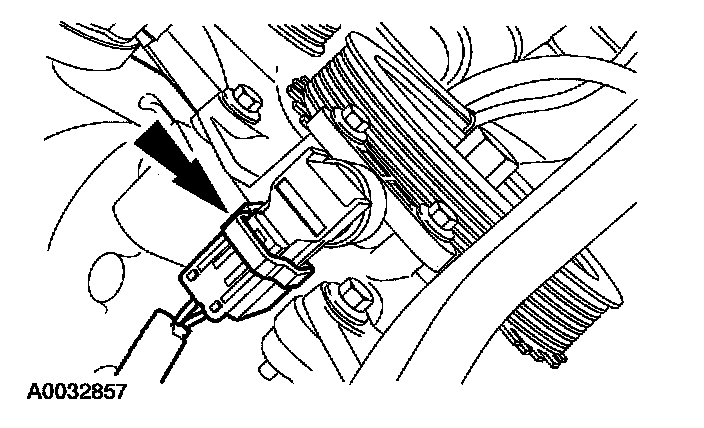

3. Connect the CKP electrical connector.




4. Remove the M6 bolt.




5. Remove the special tool.

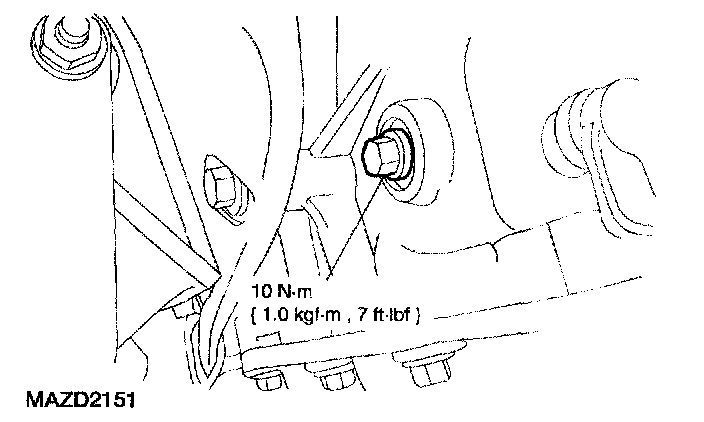

6. Install the plug for the crankshaft timing peg.
