Wiring Harness

WIRING HARNESS

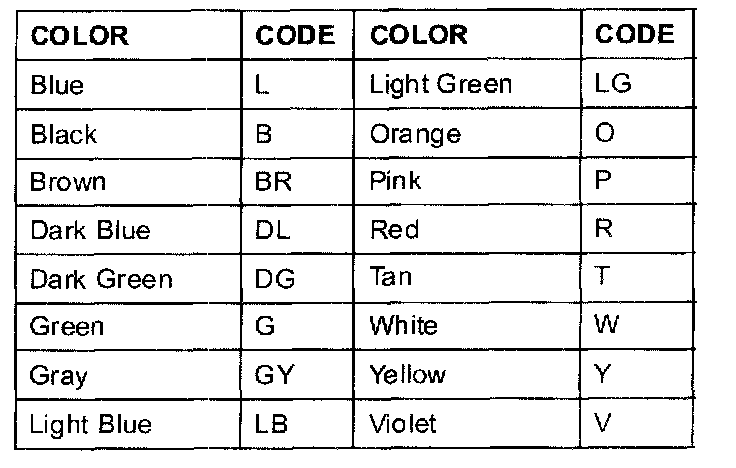

Wiring color codes

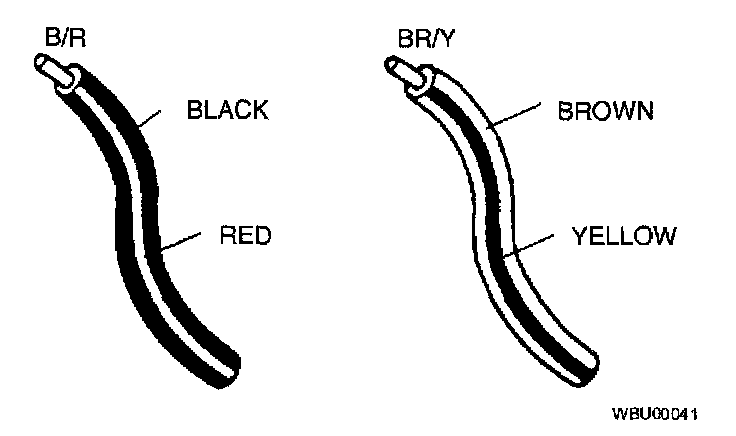

- Two-color wires are indicated by a two-color code symbol
- The first letter indicates the base color of the wire and the second the color of the stripe.
