Lock Cylinder Functional

Lock Cylinder Functional
1. Disconnect the negative battery cable.

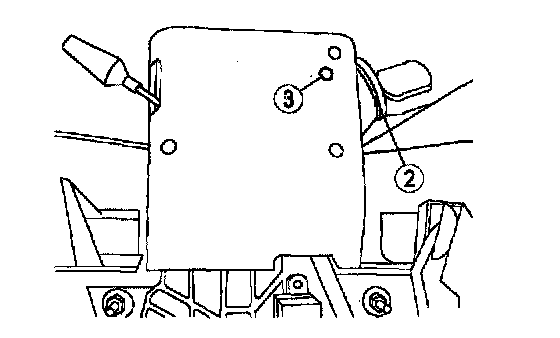

2. Insert the ignition key (2) and turn to the RUN position.
3. Press the lock cylinder release pin (3) while pulling out the lock cylinder.
4. Install in reverse order of removal.





5. Verify lock cylinder operation.
