One Touch Down Relay Inspection

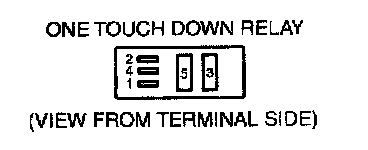

ONE TOUCH DOWN RELAY INSPECTION




Perform this test when directed in the diagnostic pinpoint tests.

1. Measure resistance between terminal 2 and terminals 1, 3, 4, and 5. If resistance is 5 Ohms or less between terminal 2 and any other terminal, Replace the relay. If resistance is greater than 5 Ohms, go to step 2.
2. Use two jumper wires to connect terminals 1 and 3 directly to the positive battery terminal. Measure voltage at terminal 4. If there is no battery voltage, Replace the relay. If there is battery voltage, go to step 3.
3. Connect a third jumper wire to terminal 2 and a known good ground. Measure voltage at terminal 5. If there is no battery voltage, Replace the relay.
