Throttle Position Sensor: Service and Repair

THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION

Removal and Installation

1. Disconnect the negative battery cable.




2. Disconnect the throttle position (TP) sensor electrical connector.

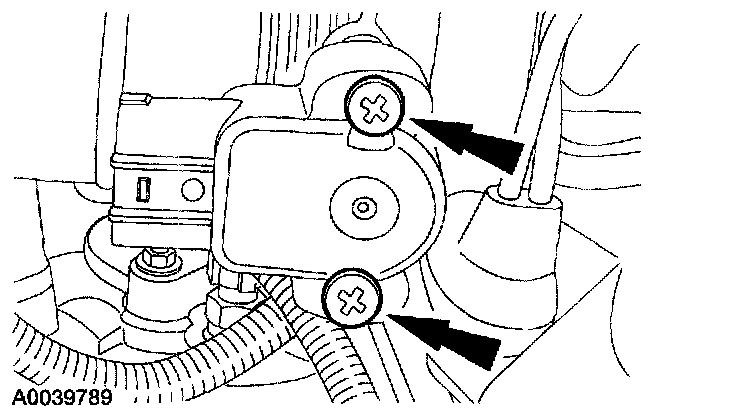

3. Remove the two screws and the TP sensor

NOTE: Failure to install the throttle position sensor in this manner may result in excessive idle speeds. Slide the rotary tangs into position over the throttle shaft blade, then rotate the throttle position sensor.

4. To install, reverse the removal procedure.
