Tightening Specifications

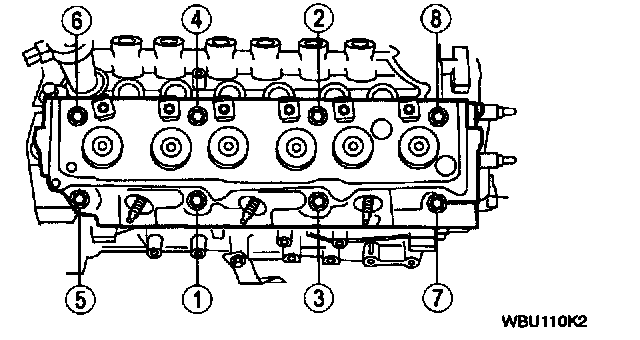

Install the bolts. Tighten the bolts in the sequence shown in four steps.
1.
Tighten the bolts to
80 Nm (8.2 kgf-m, 59 ft. lbs.). 2.
Loosen the bolts one full turn. 3.
Tighten to
45 - 55 Nm (4.6 - 6.6 kgf-m, 34 - 40 ft. lbs.). 4.
Tighten to
85 - 99 Nm (8.7 - 10.1 kgf-m, 63 - 73 ft. lbs.).
