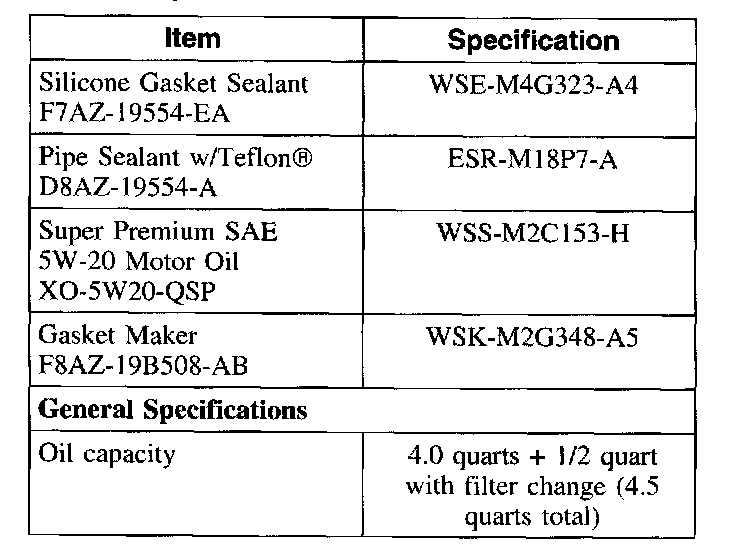

General Engine Specifications

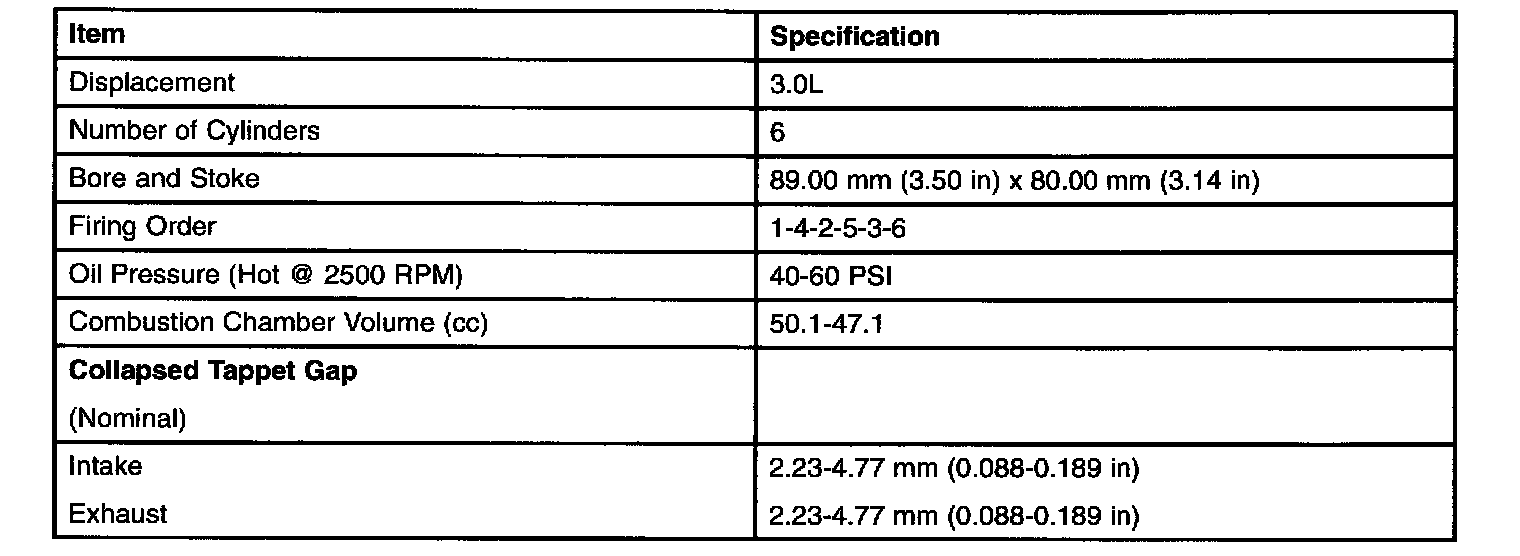

ENGINE SPECIFICATIONS-3.0L

FUEL SYSTEM SPECIFICATIONS

CHARGING SYSTEM SPECIFICATIONS

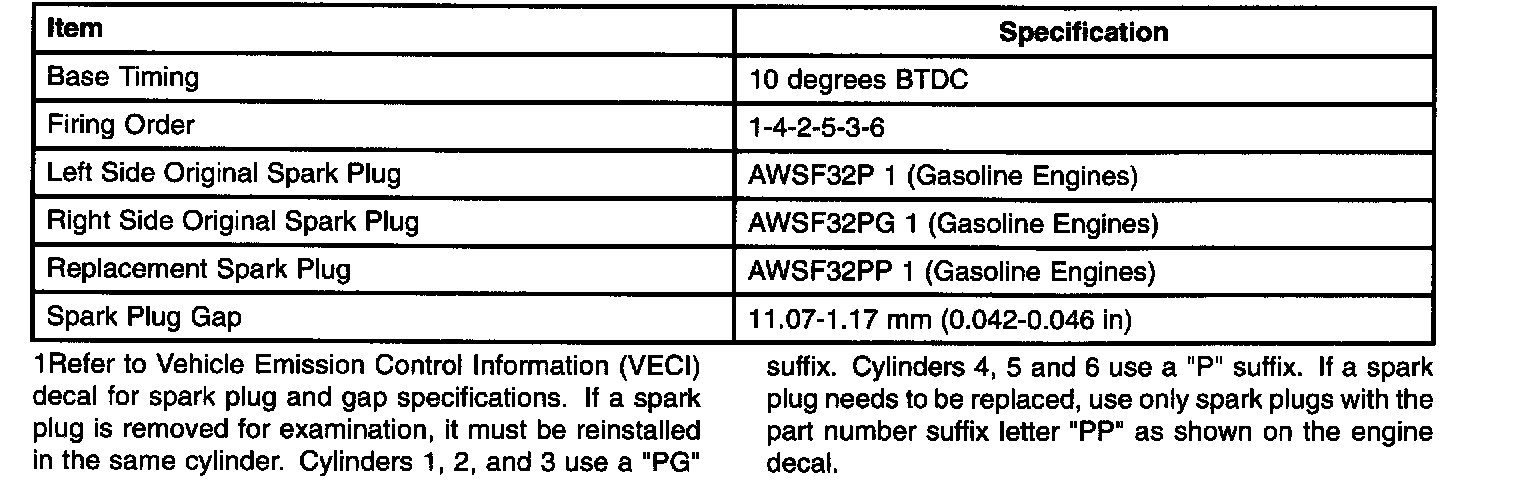

ENGINE IGNITION SPECIFICATIONS-3.0L

STARTING SYSTEM SPECIFICATIONS

Tightening Specifications

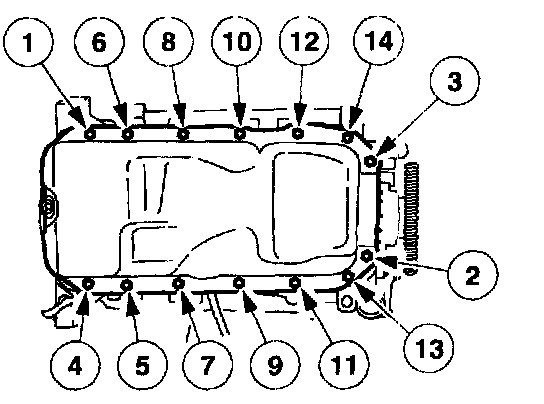

Oil pan bolts
Stage 1: Starting from the rear of the oil pan, hand tighten the fasteners.
Stage 2: Starting from the rear of the oil pan, tighten the fasteners to 12 Nm (1.2 kgf-cm (9 ft. lbs.).
