Exhaust Manifold

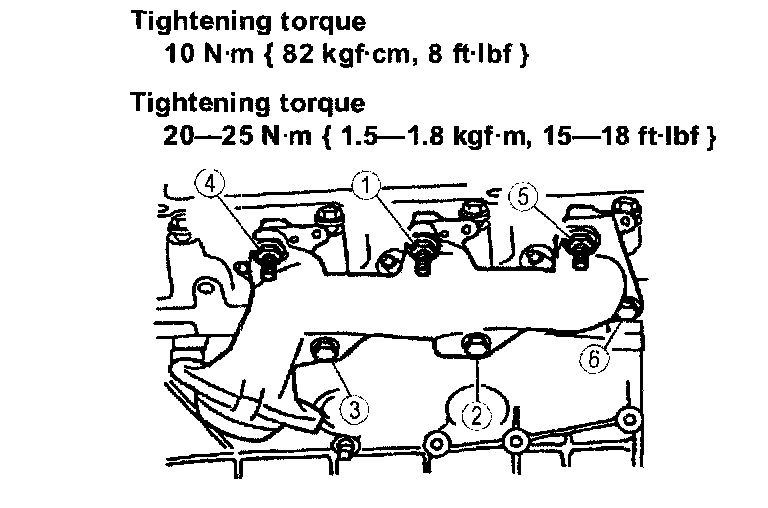

Exhaust manifold RH torque and sequence Install the bolts and the nuts. Tighten the sequence shown in two steps:

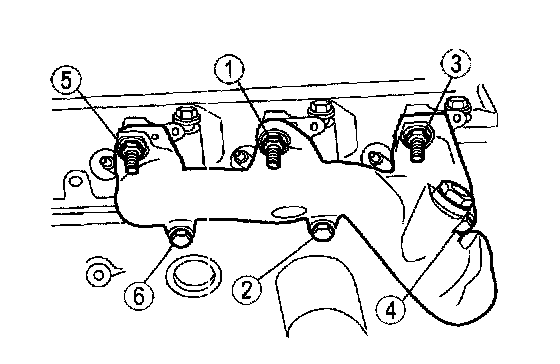

Exhaust manifold LH torque and sequence Install the bolts and the nuts.
Tighten the nuts and the bolts in sequence in two steps:
Tightening torque
10 Nm (82 kgf-cm, 8 ft. lbs.)
Tightening torque
20-25 Nm (1.5-1.8 kgf-m, 15-18 ft. lbs.)
