A/C Compressor Bracket
A/C COMPRESSOR BRACKET REMOVAL / INSTALLATION 1.
Remove the A/C compressor.
2.
Remove the power steering pump from the A/C compressor bracket, see POWER STEERING PUMP REMOVAL / INSTALLATION.
3.
Remove the A/C compressor bracket.

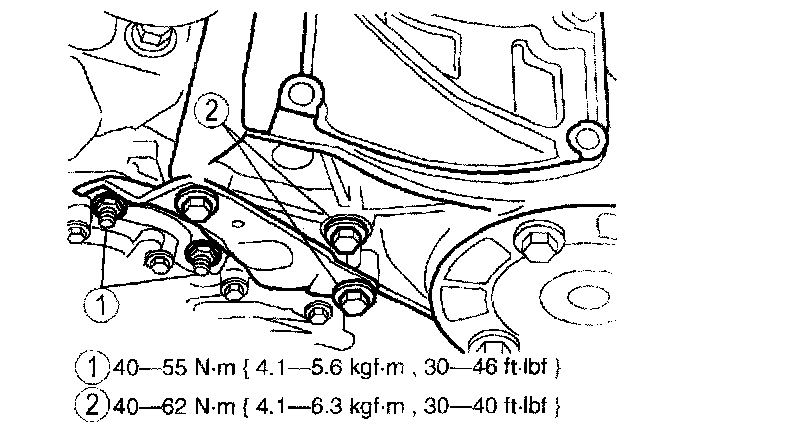

1.
Loosen the nuts.
2.
Remove the bolts and remove the bracket.
