Pinout Values and Diagnostic Parameters

4.0L (M/T) Terminal Voltage (Reference)

NOTE: All values shown may vary 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.

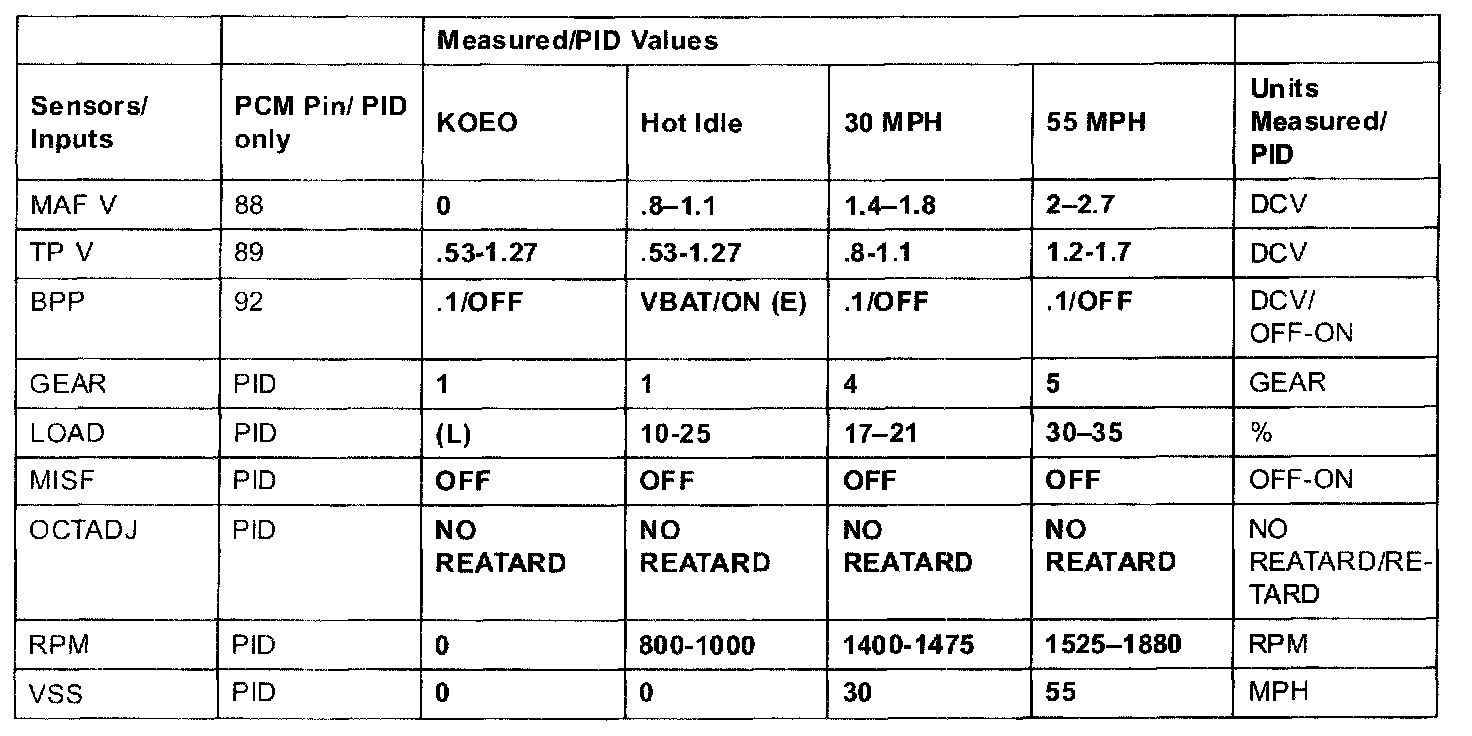

Sensor/Inputs

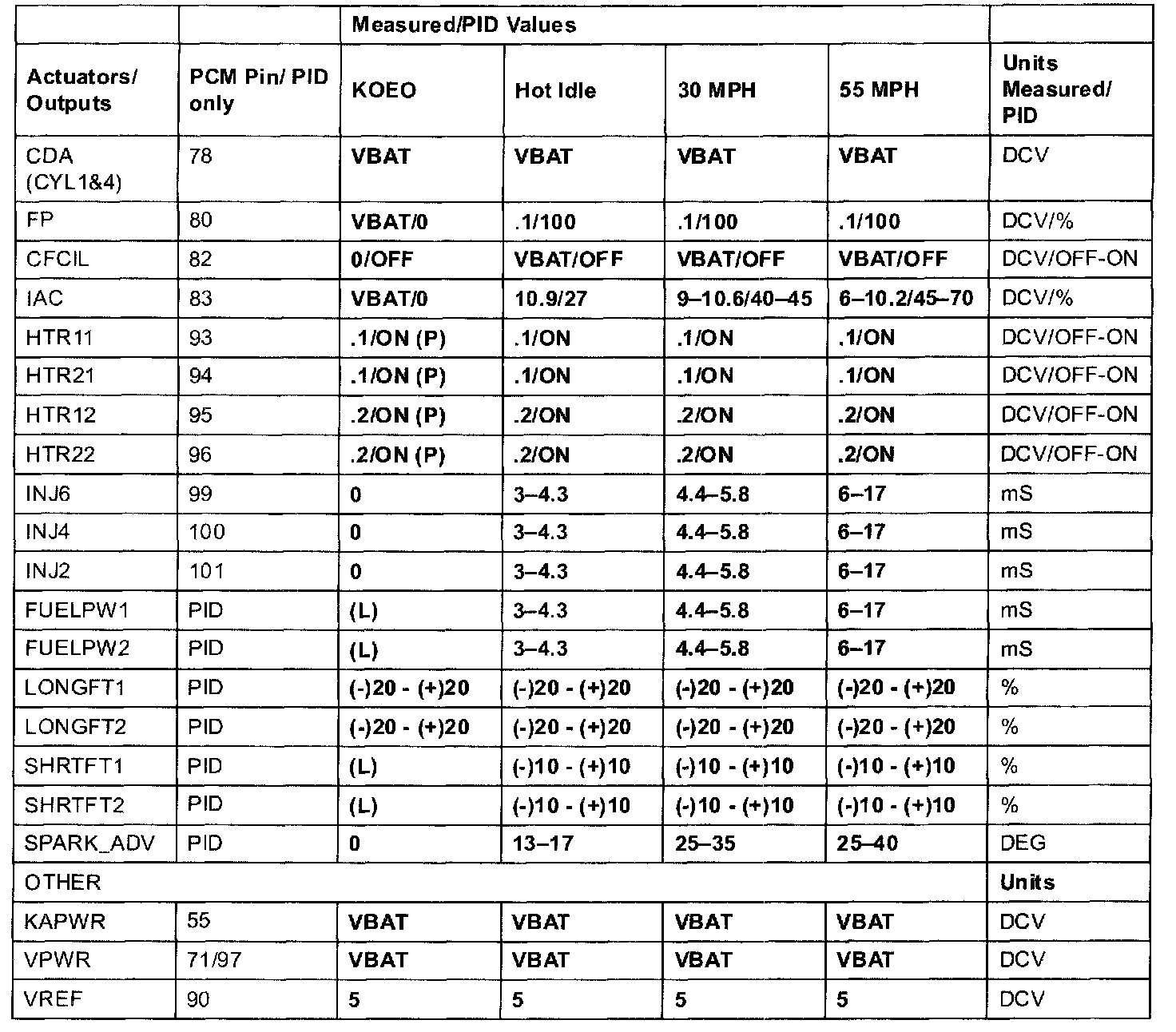

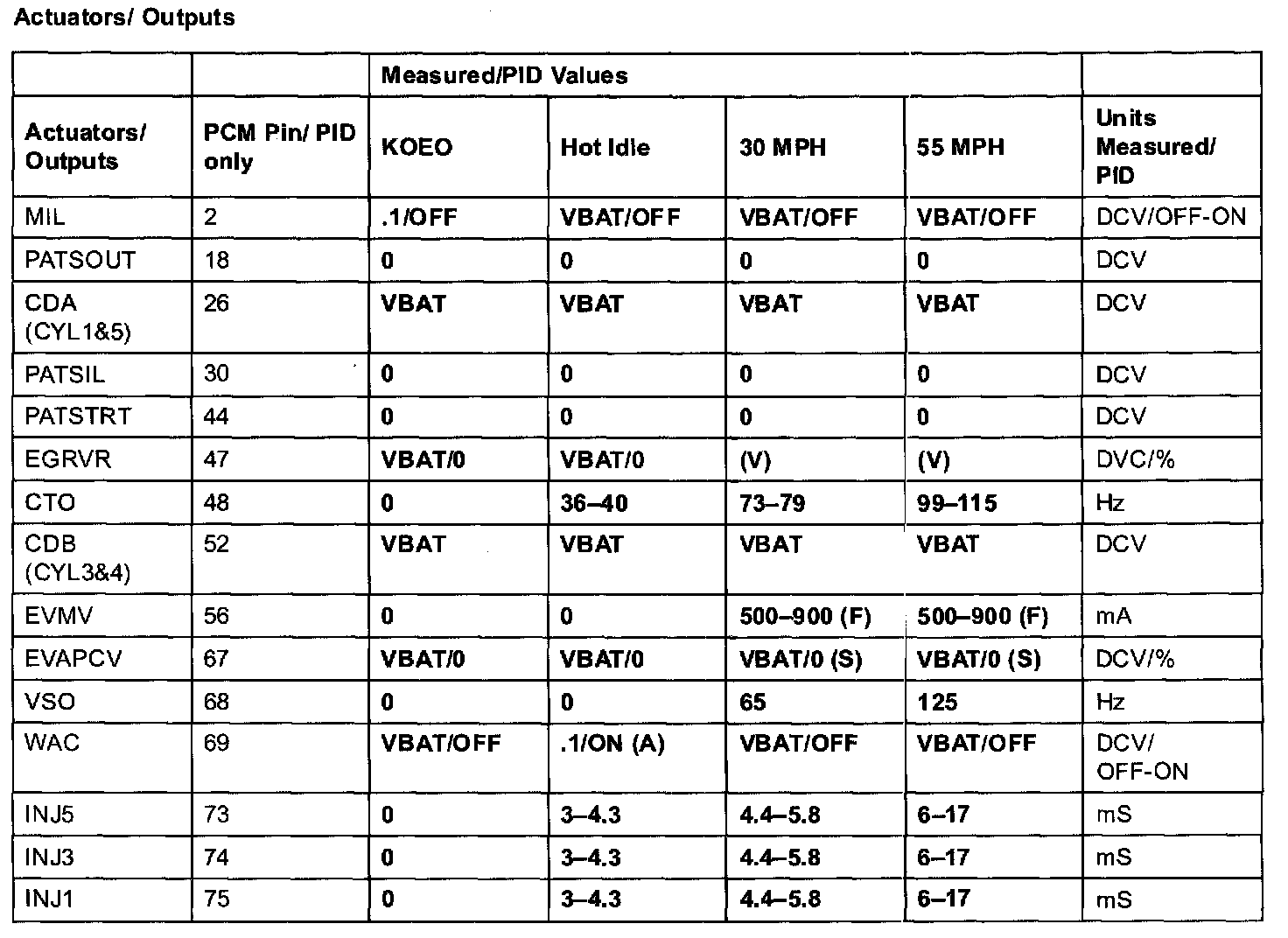

Actuators/Outputs

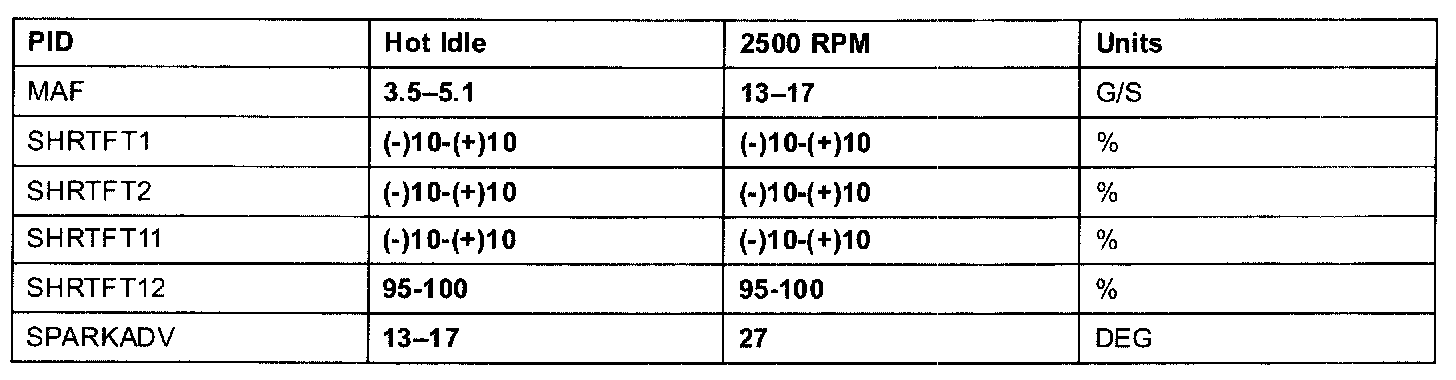

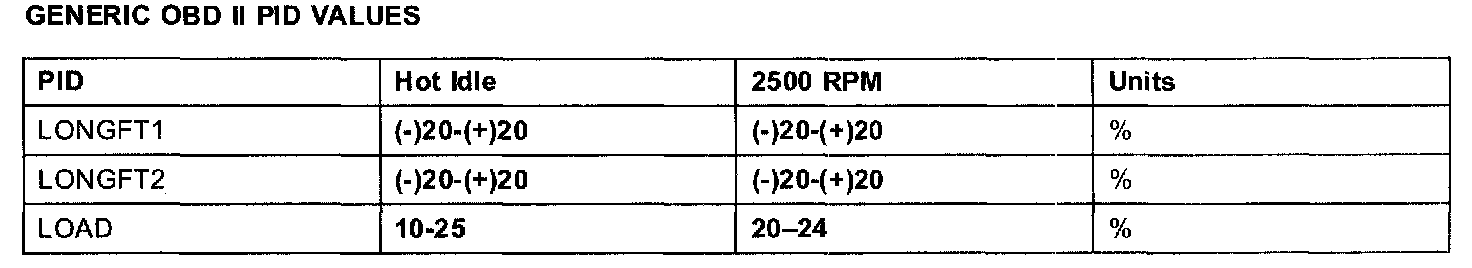

GENERIC OBD II PID VALUES

4.0L (A/T) Terminal Voltage (Reference)

NOTE: All values shown may vary 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.

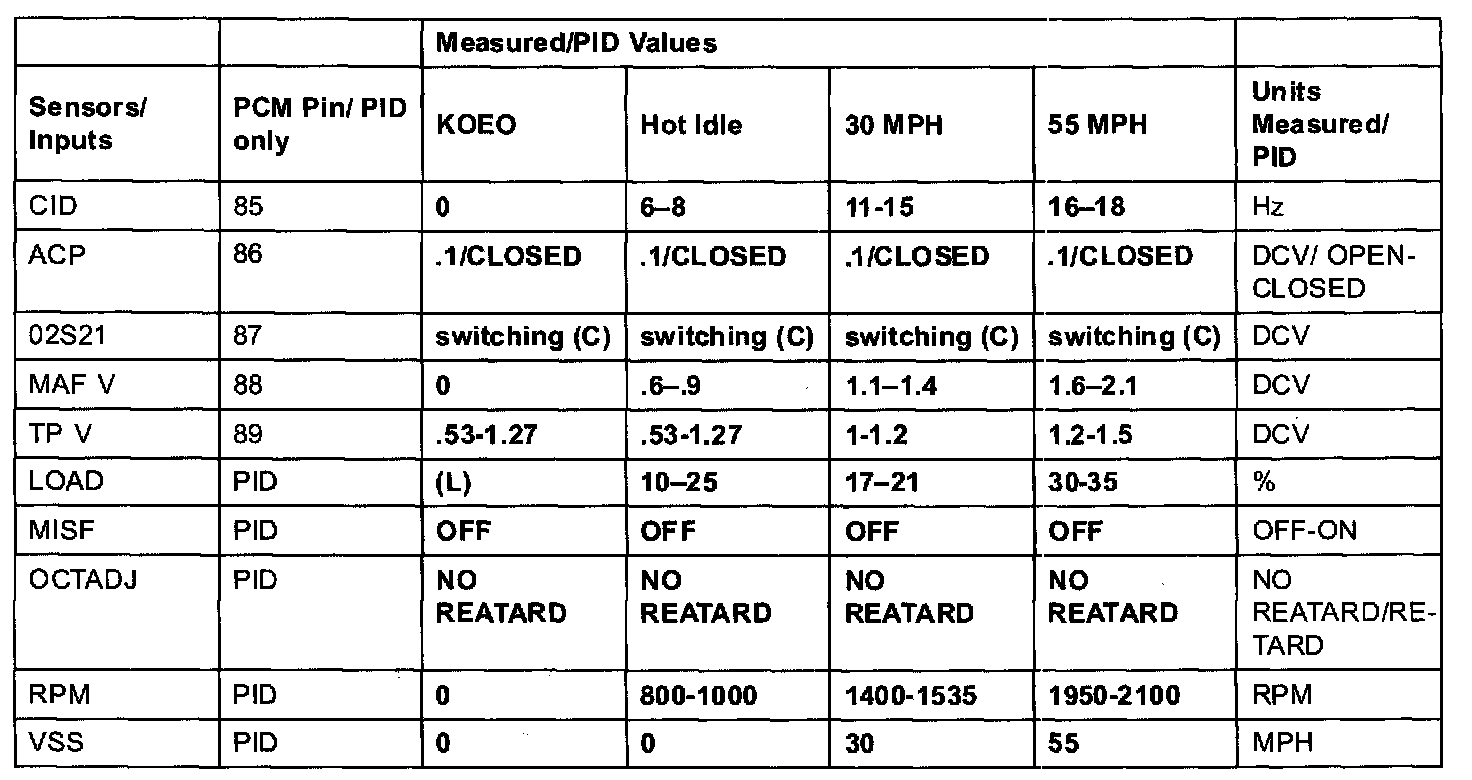

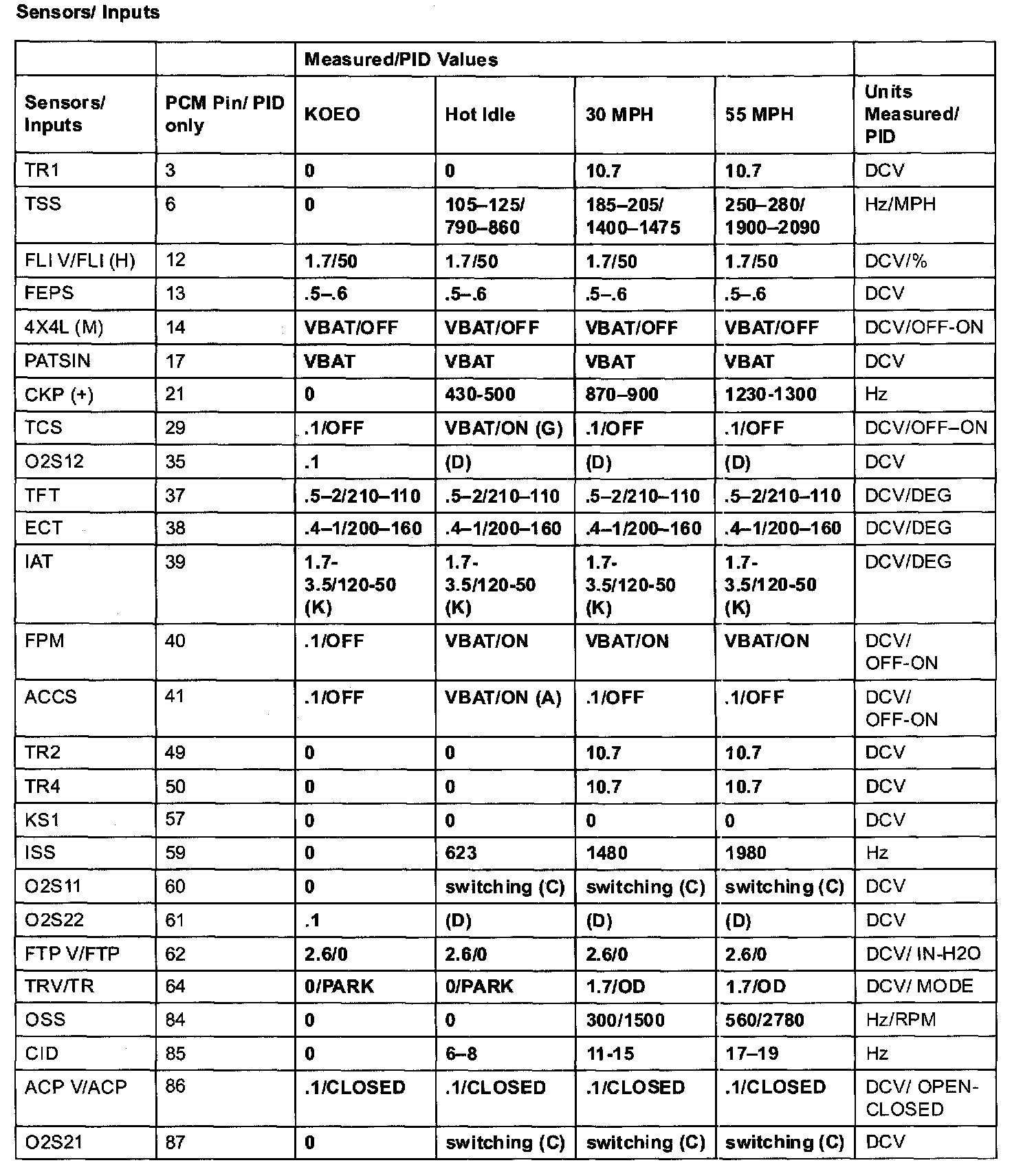

Sensor/Inputs

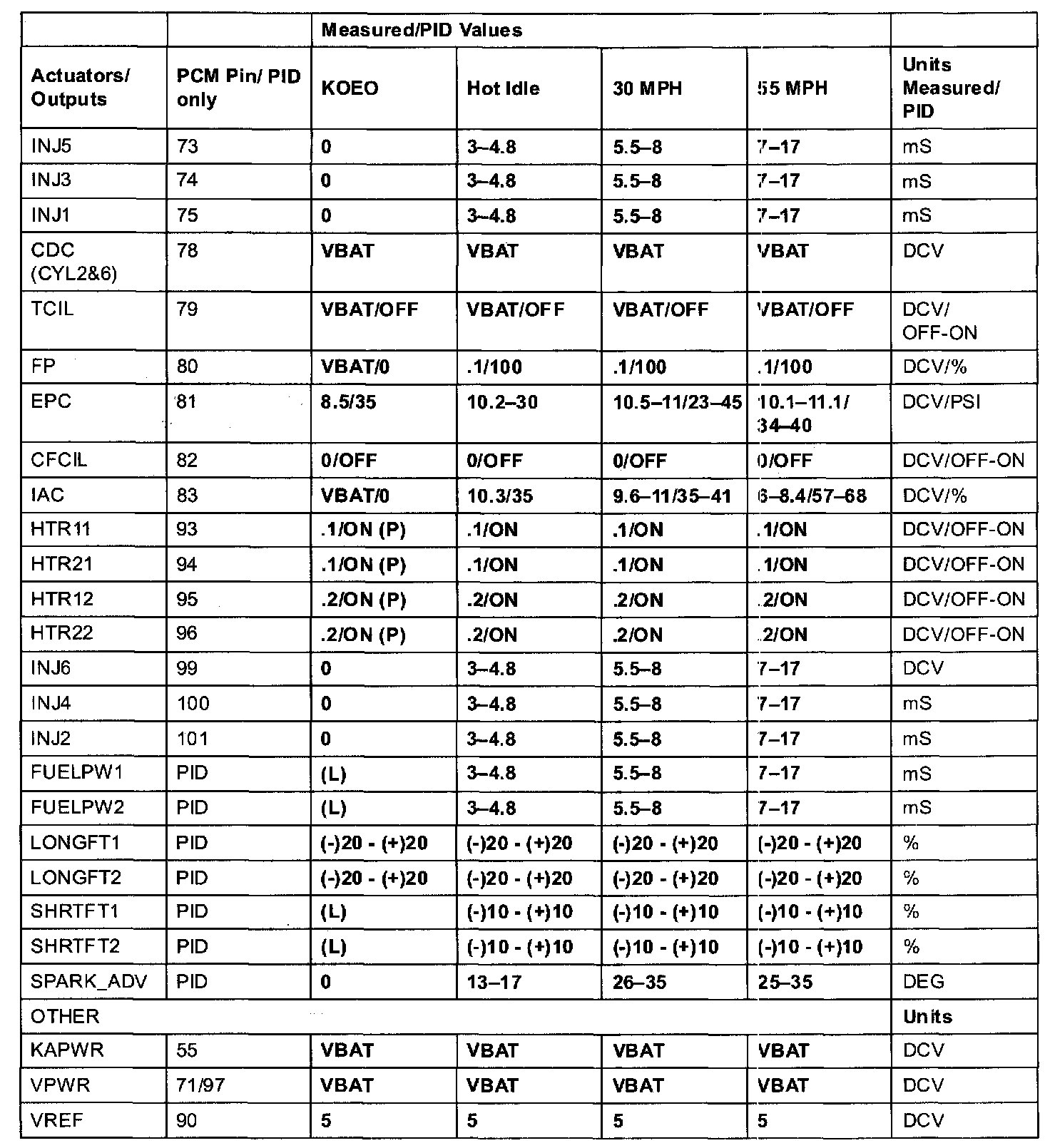

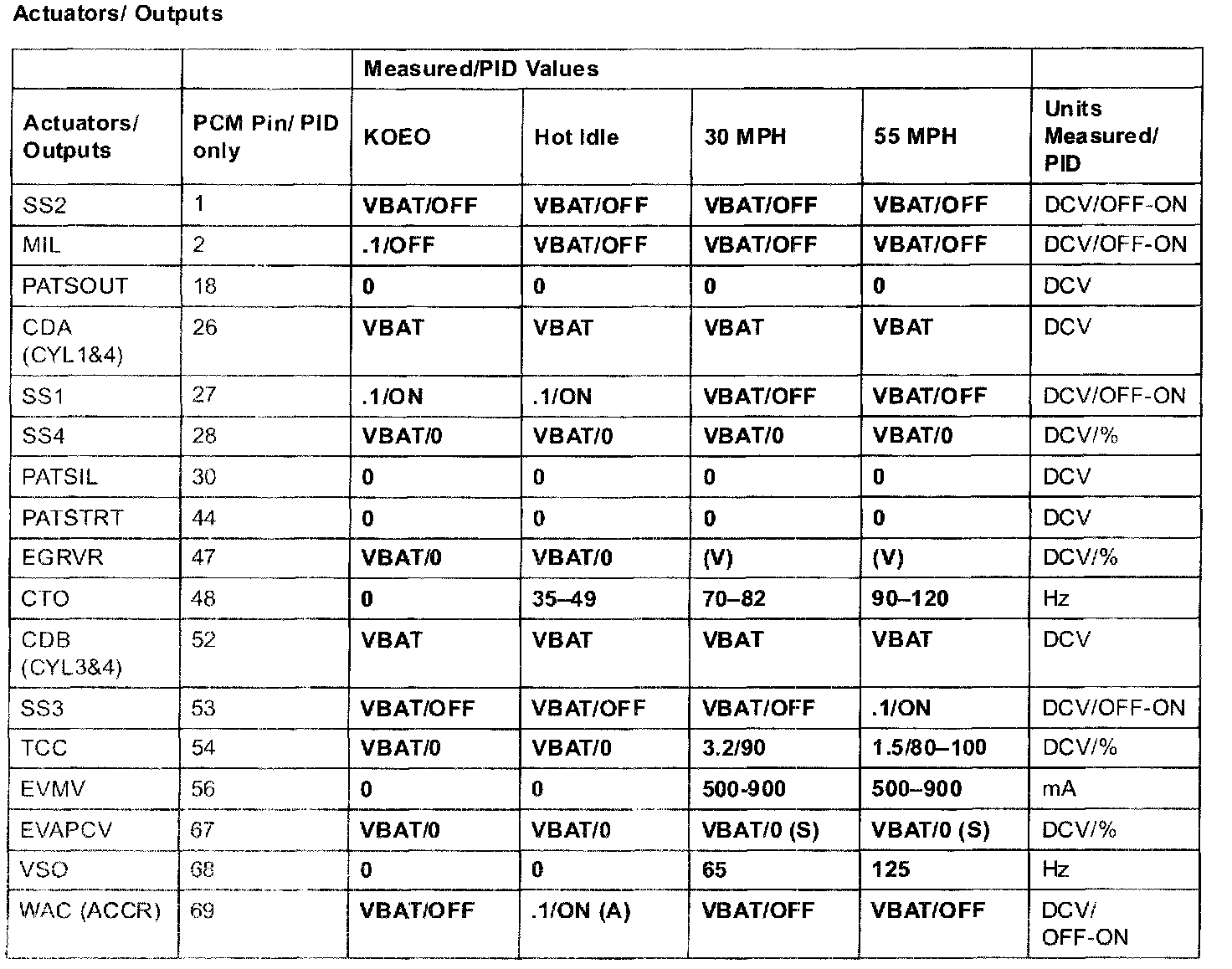

Actuators/Outputs

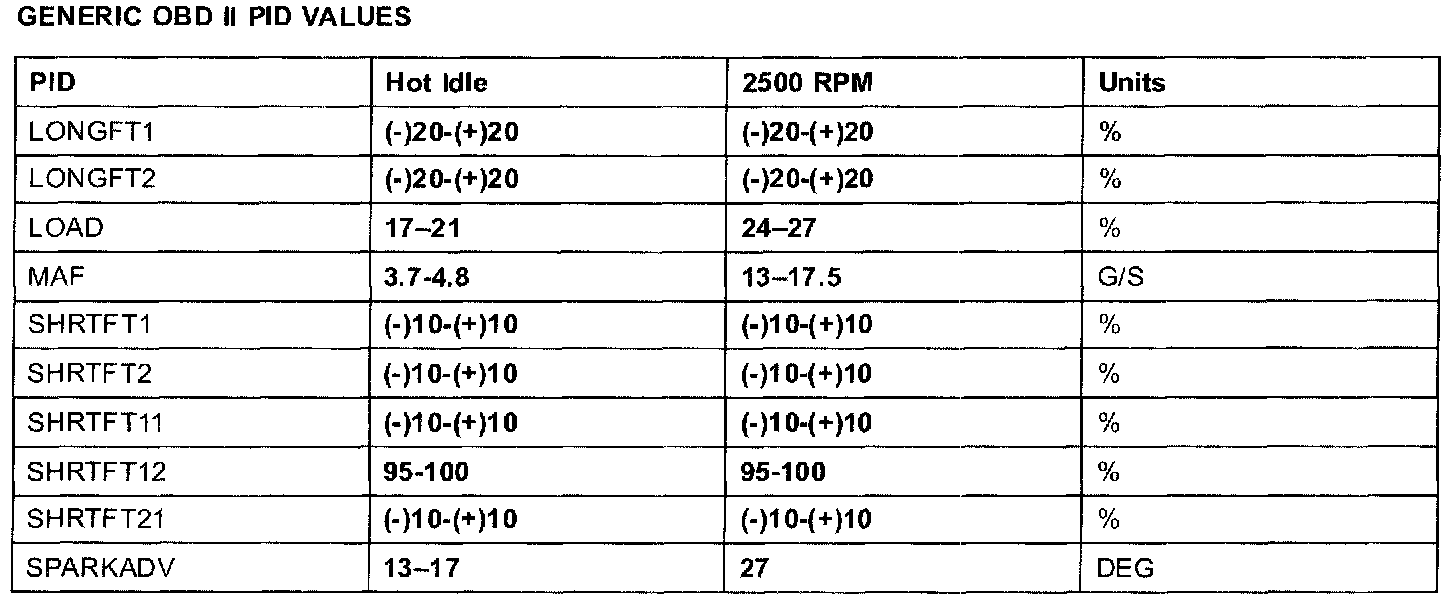

GENERIC OBD II PID VALUES
