Exhaust Gas Recirculation: Description and Operation

EGR SYSTEM COMPONENTS

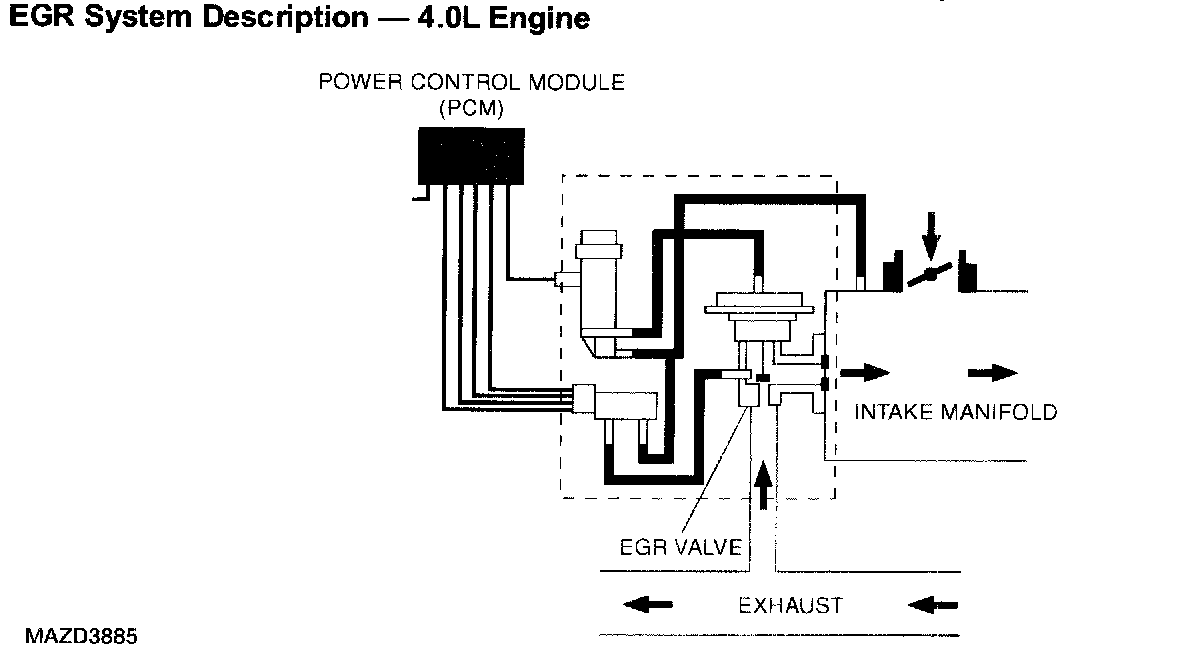

EGR System Description

- The 4.0L engine, the powertrain control module (PCM) controls the EGR vacuum regulator solenoid. The EGR vacuum regulator solenoid controls the vacuum to the EGR valve. When the EGR valve opens, exhaust gas flows to the intake manifold to be returned to the combustion cycle. The differential pressure feedback EGR system monitors the flow and returns a signal to the powertrain control module (PCM).
