EGR Tube: Service and Repair

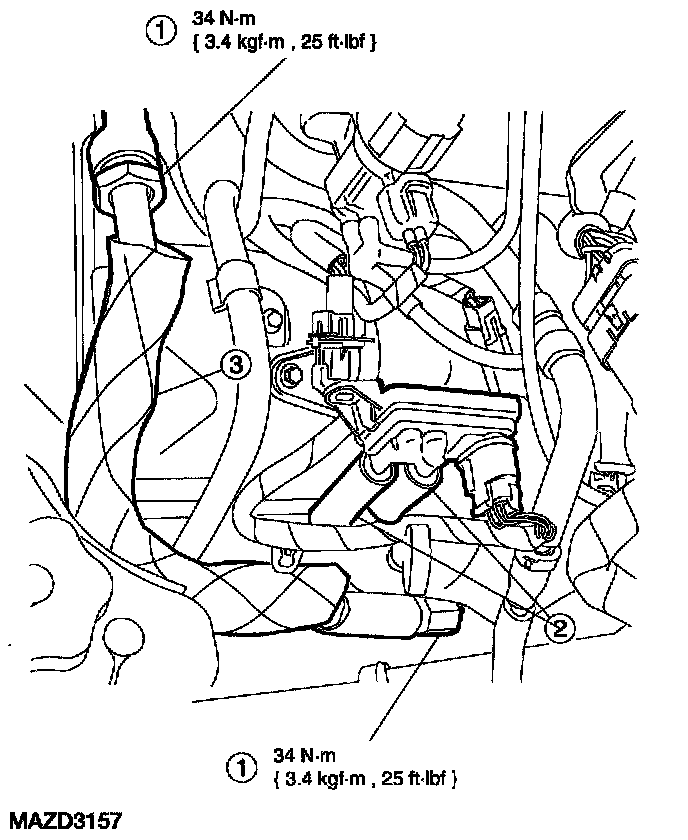

EGR VALVE TUBE REMOVAL/INSTALLATION




1. Remove the exhaust gas recirculation (EGR) valve tube.
1. Disconnect the EGR valve tube fittings.
2. Disconnect the differential pressure feedback EGR hoses.
3. Remove the tube.

2. To install, reverse the removal procedure.
