EGR Valve: Service and Repair

EGR VALVE REMOVAL/INSTALLATION

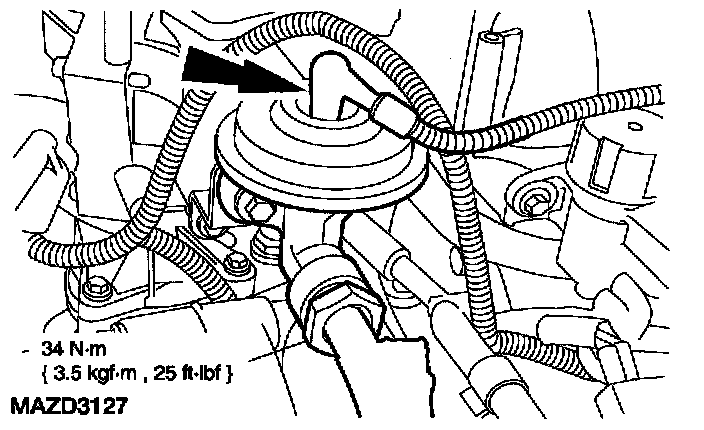

1. Disconnect the exhaust gas recirculation (EGR) valve.
- Disconnect the vacuum line.
- Disconnect the EGR valve tube fitting.

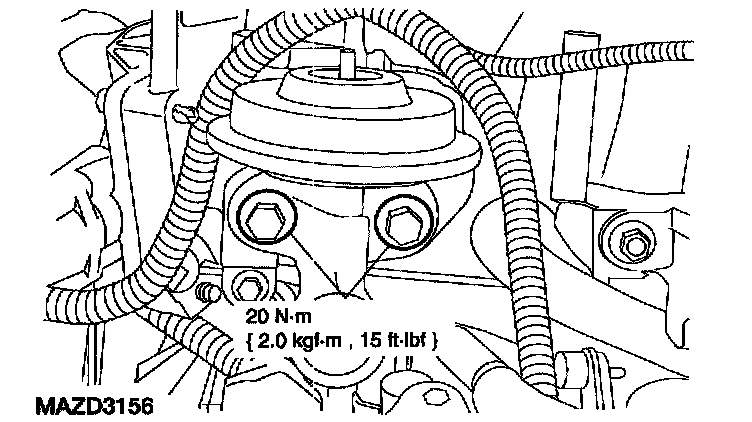

2. Remove the EGR valve bolts and the EGR valve.
- Discard the gasket.

NOTE: The EGR valve sealing surfaces are soft metals.

3. To install, reverse the removal procedure.
- Carefully clean the EGR valve sealing surfaces.
- Install a new EGR valve gasket.
