Alarm Module: Service and Repair

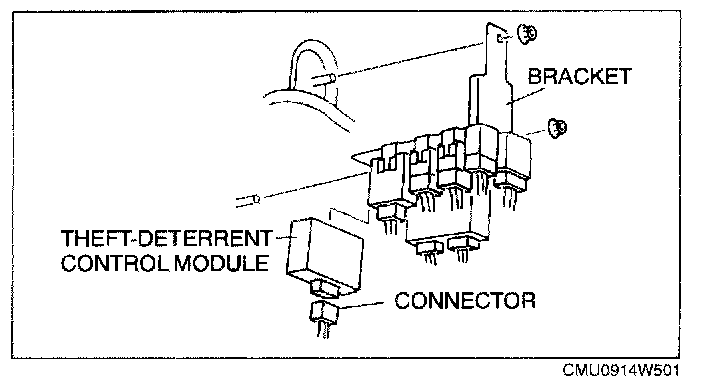

THEFT-DETERRENT CONTROL MODULE REMOVAL/INSTALLATION

NOTE: Because the lock section of the module is damaged easily, do not remove the module from the bracket unless replacement is necessary. Always perform an inspection of the theft-deterrent control module before removal.




1. Disconnect the negative battery cable.
2. Remove the bracket.
3. Disconnect the theft-deterrent control module connector.
4. Remove the theft-deterrent control module by prying the lock section of the side part with a flathead screwdriver.
5. Install in the reverse order of removal.
