Alarm Module: Testing and Inspection

THEFT-DETERRENT CONTROL MODULE INSPECTION

1. Remove the bracket without disconnecting the connectors.

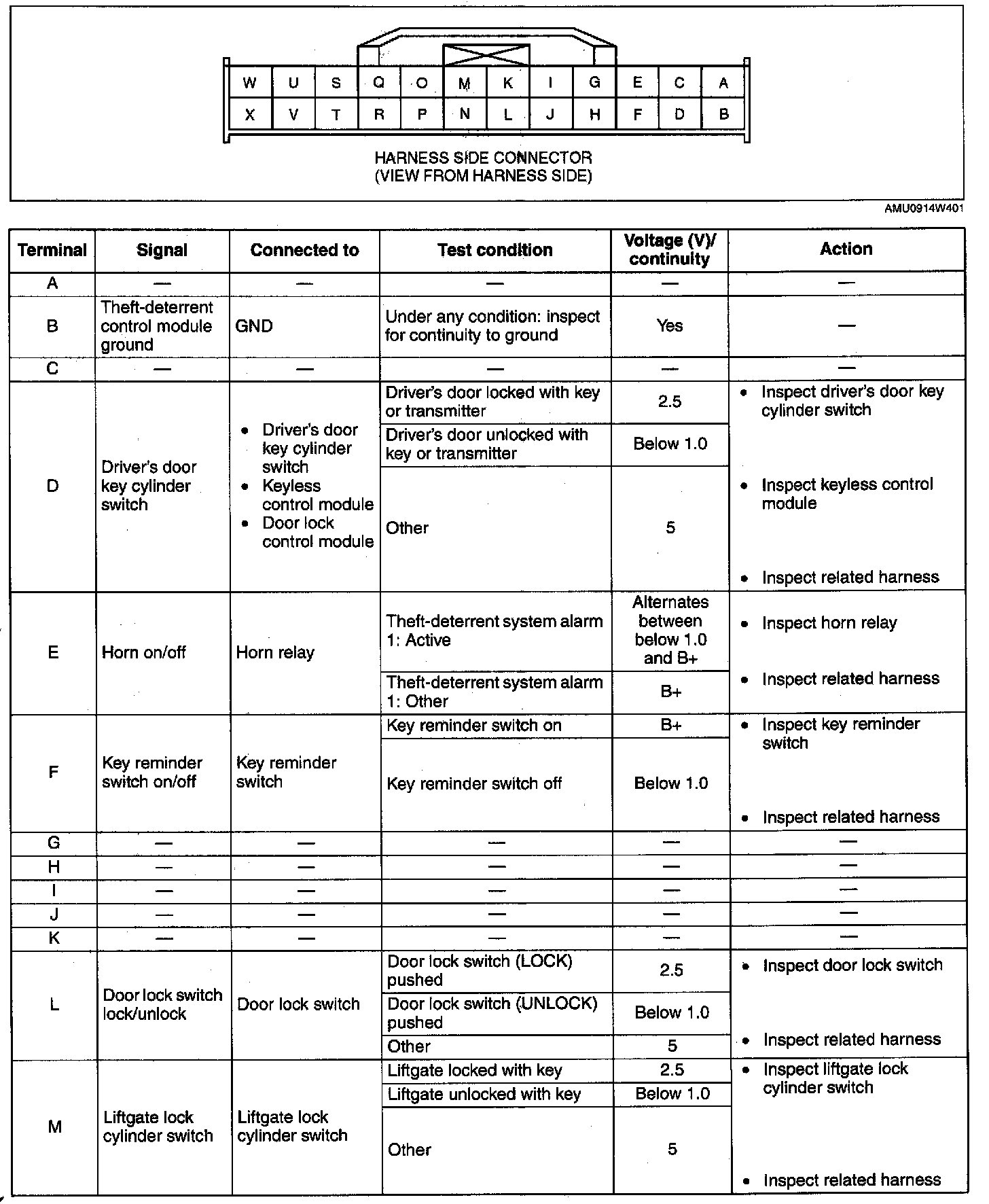

Terminal Voltage Table (Reference) - Terminal (A - M):

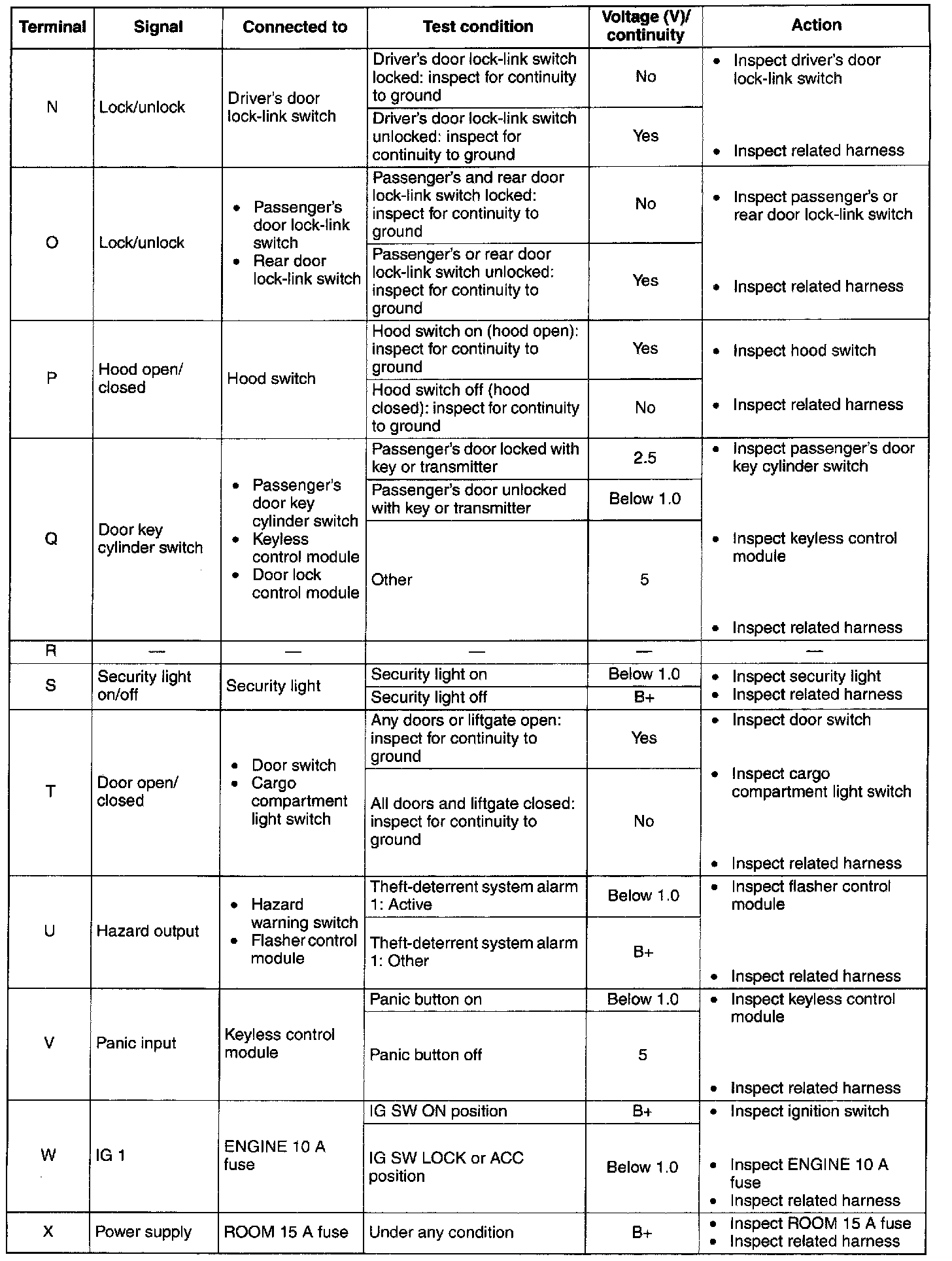

Terminal Voltage Table (Reference) - Terminal (N - X):

2. Measure the voltage at the theft-deterrent control module terminals as indicated.
3. Disconnect the theft-deterrent control module connector before inspecting for continuity at terminals B, N, O, P, and T.
- If not as specified, inspect the parts listed under "Action."
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the theft-deterrent control module.
