Trunk / Liftgate Lock Cylinder: Service and Repair

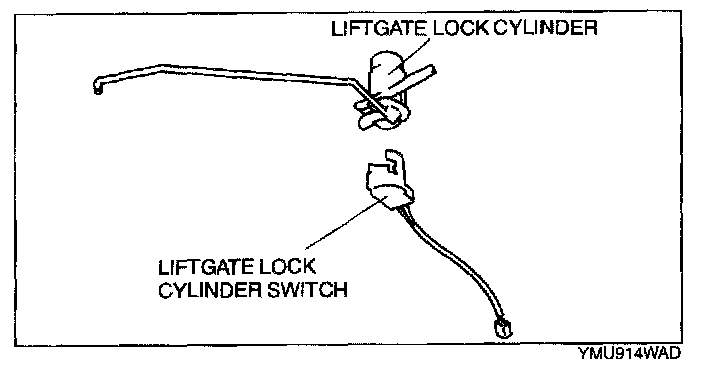

LIFTGATE LOCK CYLINDER SWITCH REMOVAL/INSTALLATION




1. Disconnect the liftgate lock cylinder switch connector.
2. Disconnect the rods.
3. Remove the nuts, and remove the liftgate lock cylinder.
4. Remove the liftgate lock cylinder switch.
5. Install in the reverse order of removal.
