Trunk / Liftgate Lock: Testing and Inspection

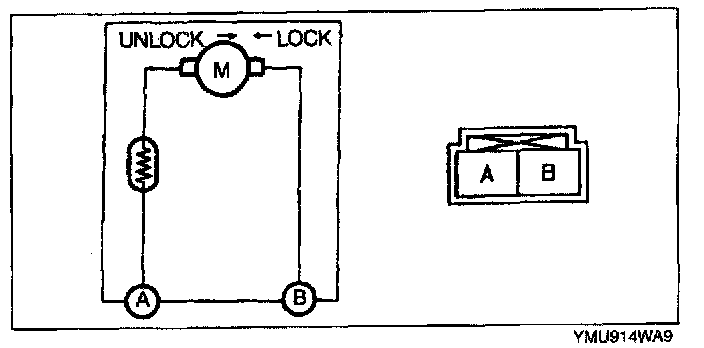

LIFTGATE LOCK ACTUATOR INSPECTION 1.
Disconnect the liftgate lock actuator connector.
2.

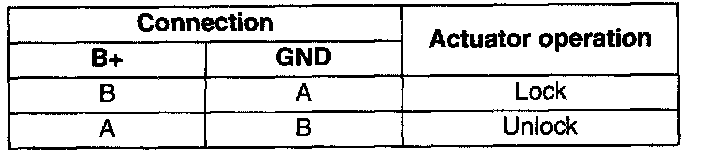

Apply battery positive voltage to the liftgate lock actuator terminals and inspect the operation of the liftgate lock actuator.
-
If not as specified, replace the liftgate lock.
