Brakes and Traction Control: Locations

Part 1:




Part 2:

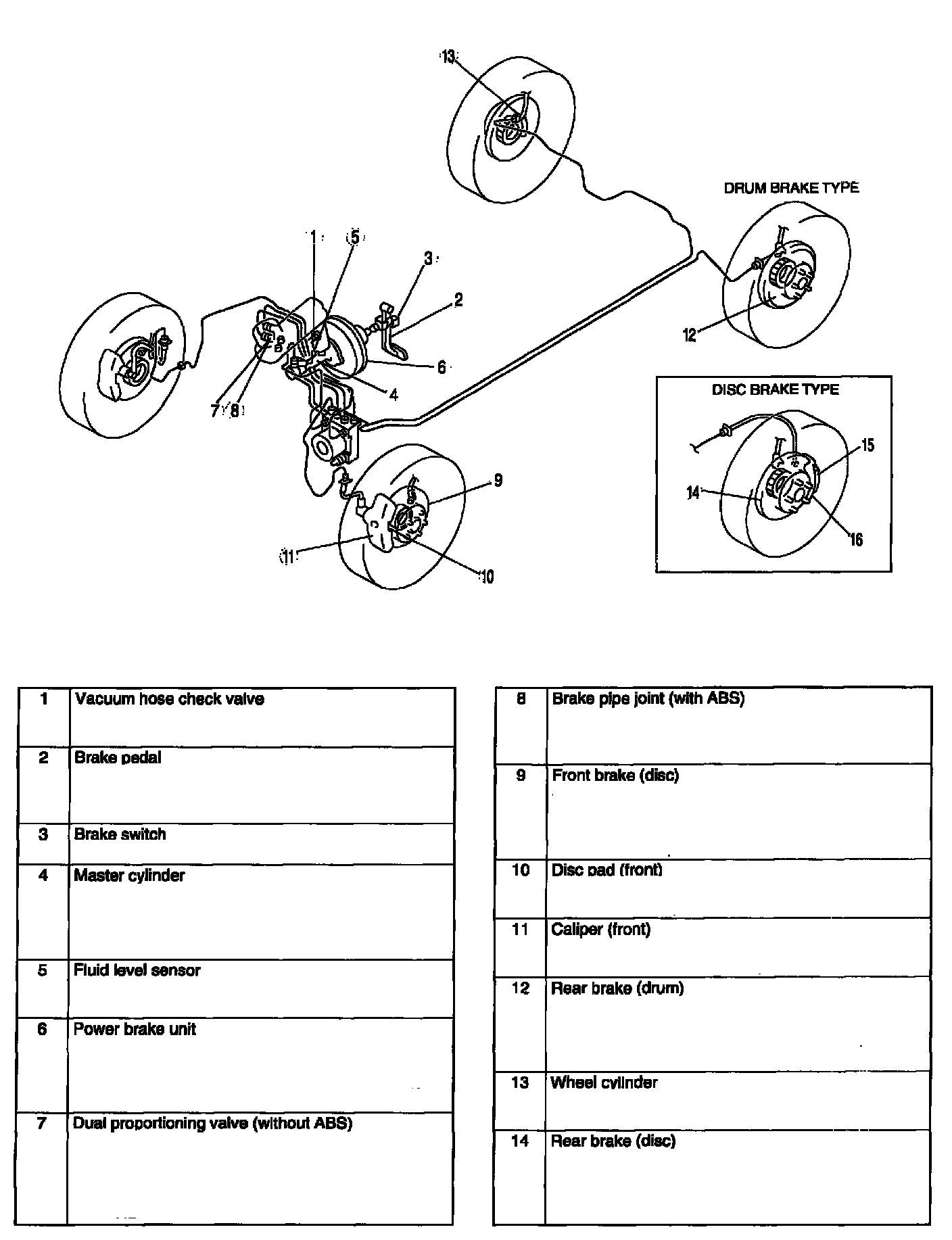

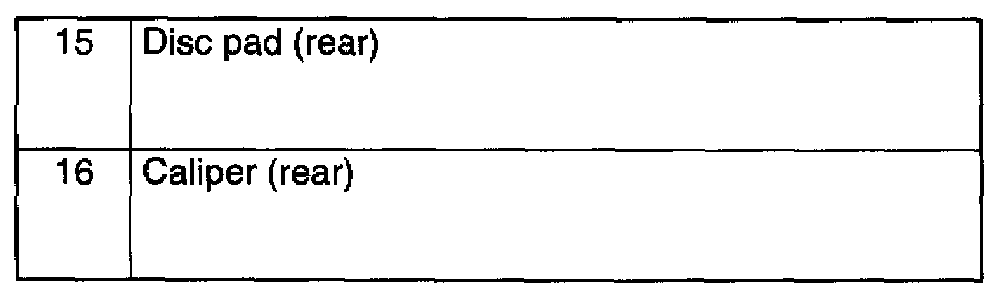

CONVENTIONAL BRAKE SYSTEM LOCATION INDEX
