Removal and Installation

REAR MAIN FAN SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the center upper panel. (See METER HOOD REMOVAL/INSTALLATION.)

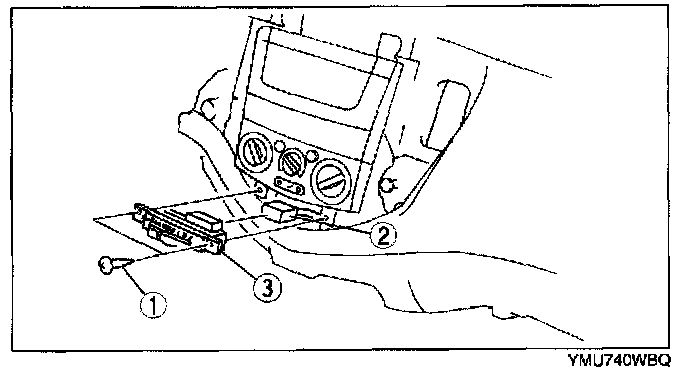

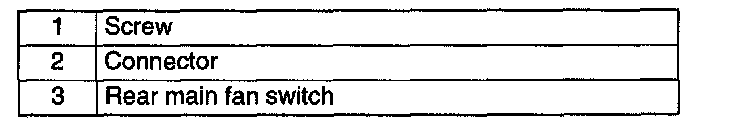

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
