Rear Main Fan Switch

REAR MAIN FAN SWITCH INSPECTION

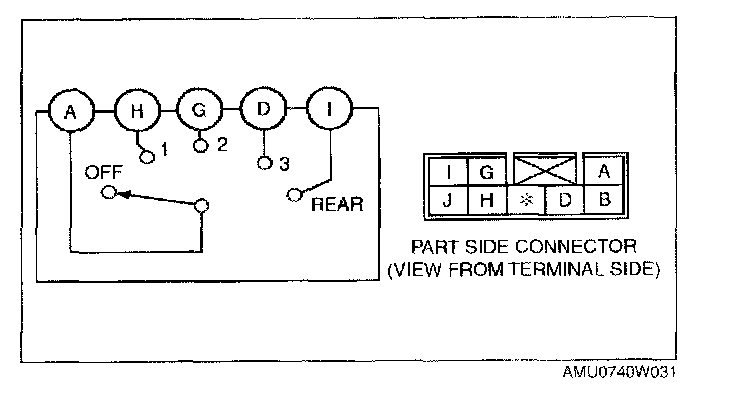

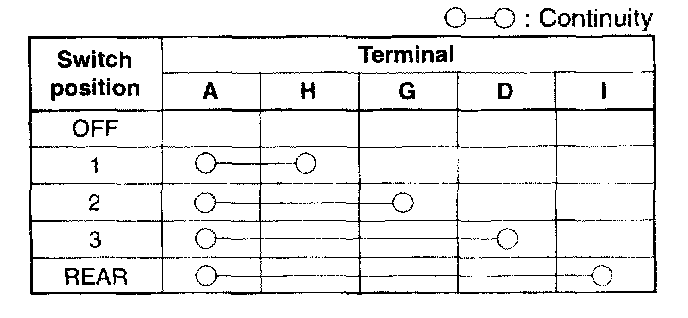

1. Inspect for continuity between the rear main fan switch terminals using a tester.
- If there is any malfunction, replace the rear main fan switch. (See REAR MAIN FAN SWITCH DISASSEMBLY/ASSEMBLY.)
