Evaporator Temperature Sensor / Switch: Service and Repair

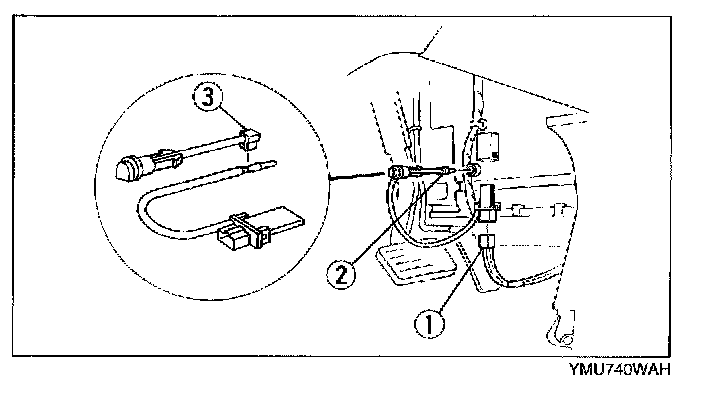

THERMOSENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

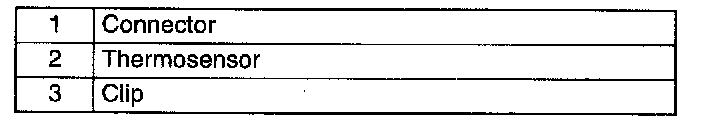

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
