Map Light: Service and Repair

MAP LIGHT REMOVAL/INSTALLATION

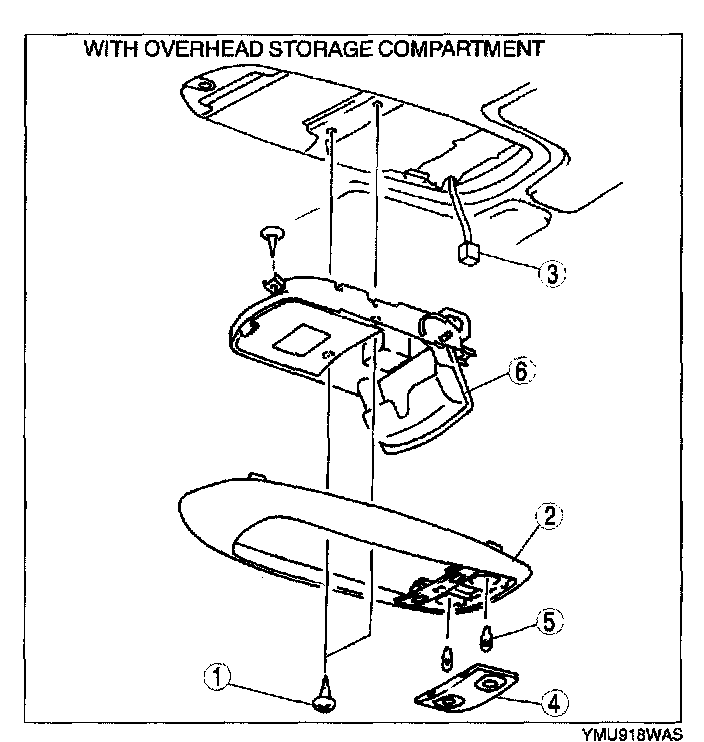

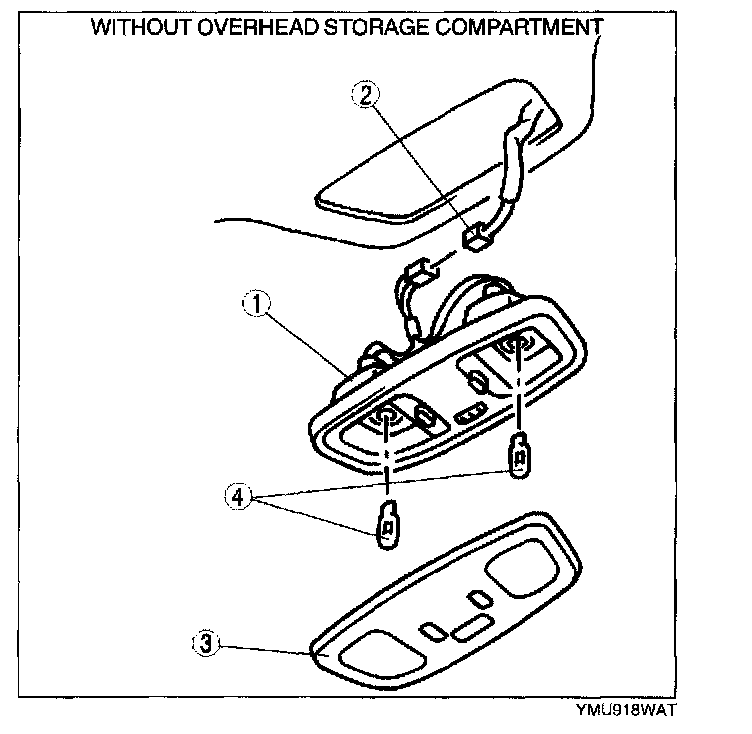

With Sliding Sunroof

1. Disconnect the negative battery cable.

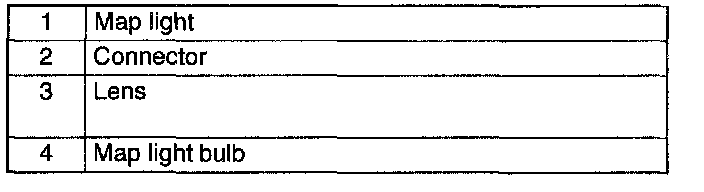

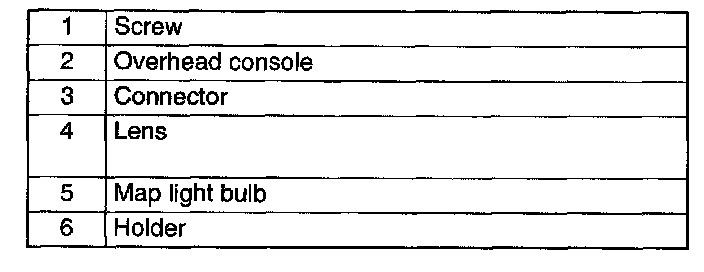

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Lens removal note

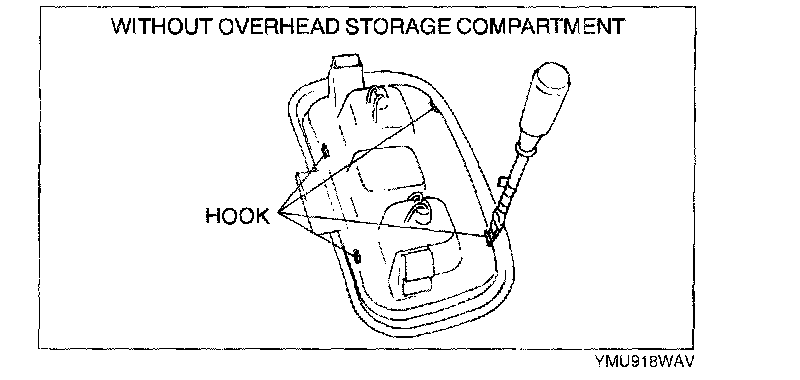

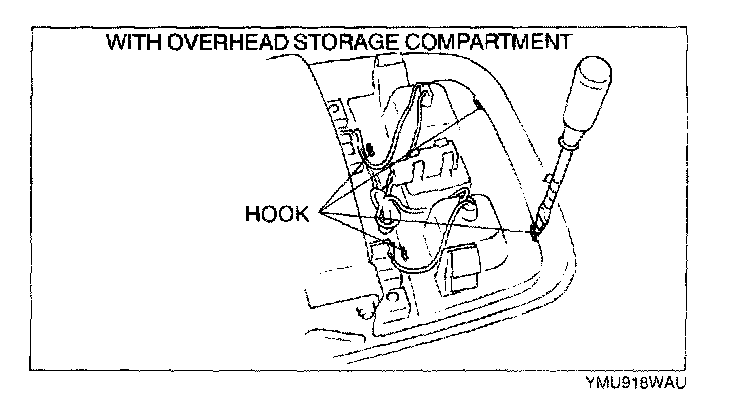

1. Push the hooks of the lens using a tape-wrapped flathead screwdriver, and remove the lens.

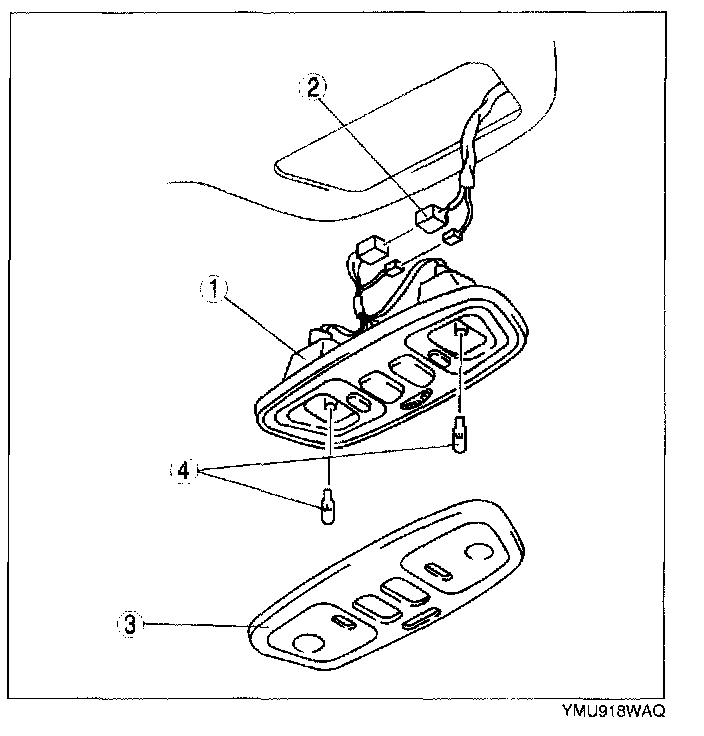

Without Sliding Sunroof

1. Disconnect the negative battery cable.

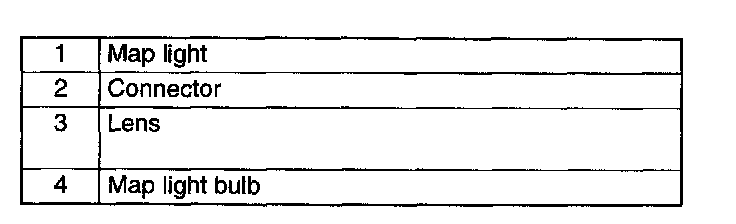

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Lens removal note

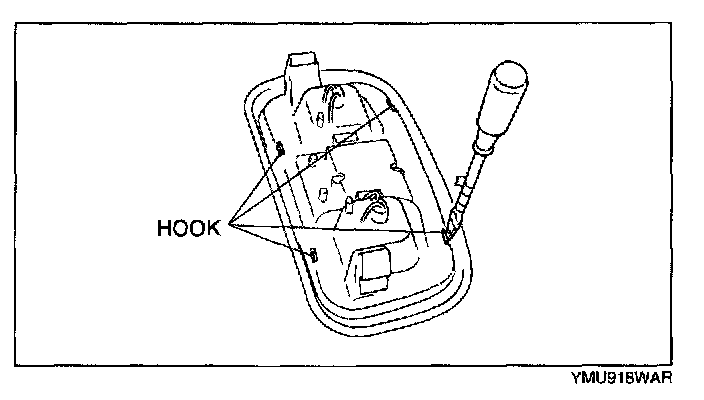

1. Push the hooks of the lens using a tape-wrapped flathead screwdriver, and remove the lens.
