Component Locations












Fuse Box Locations

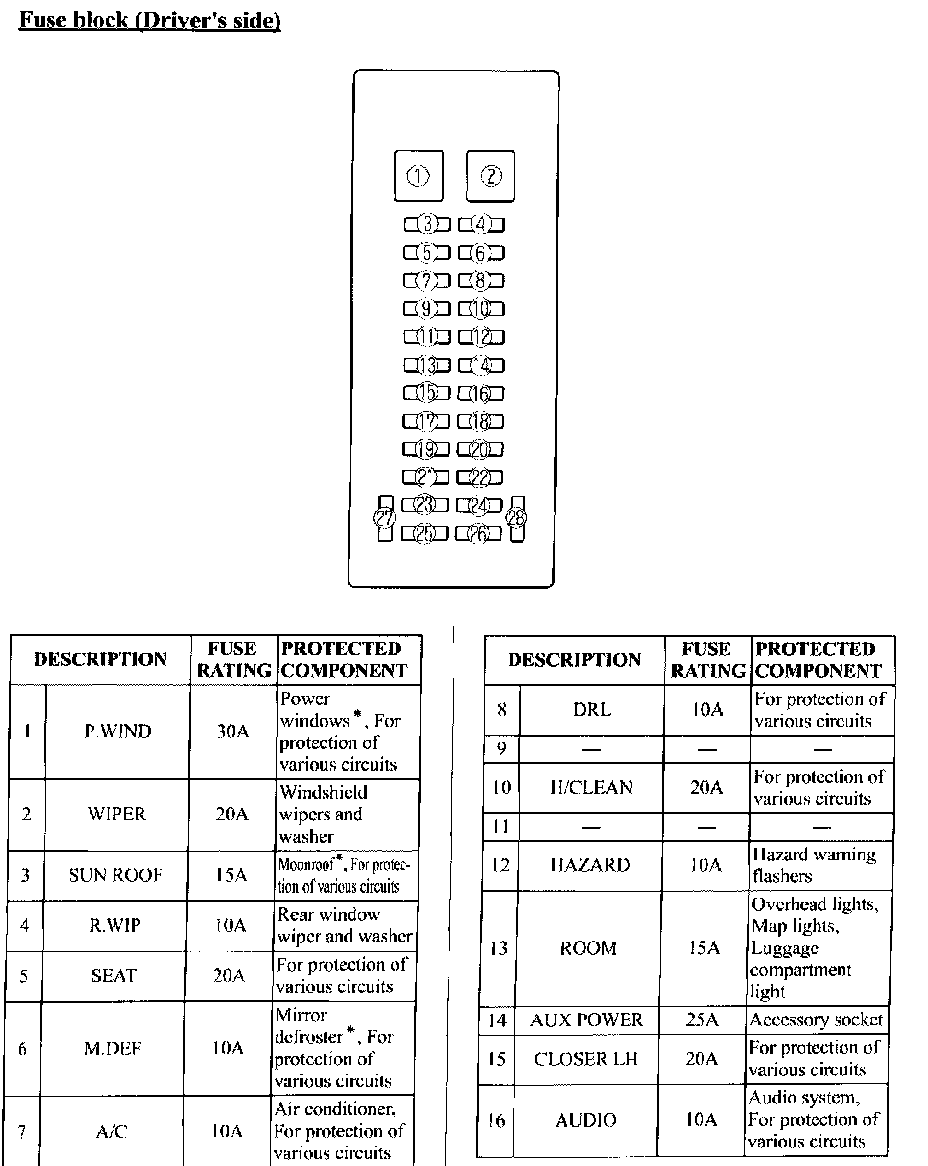

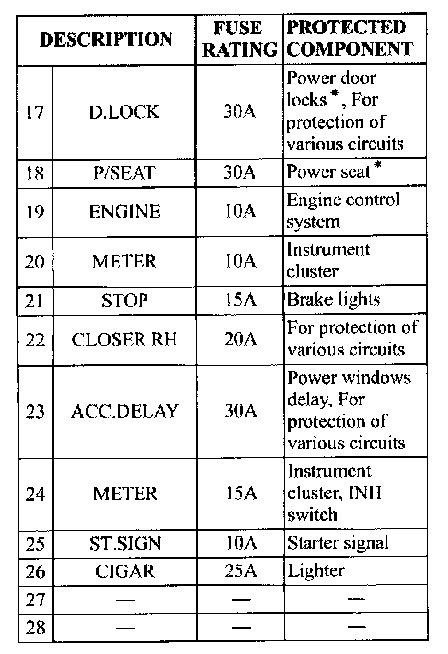

Fuse ID Passenger Compartment Box

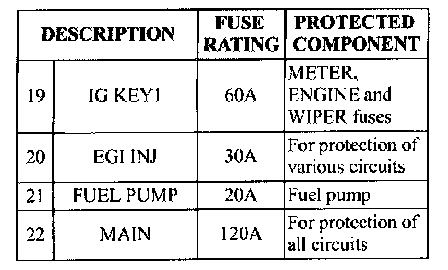

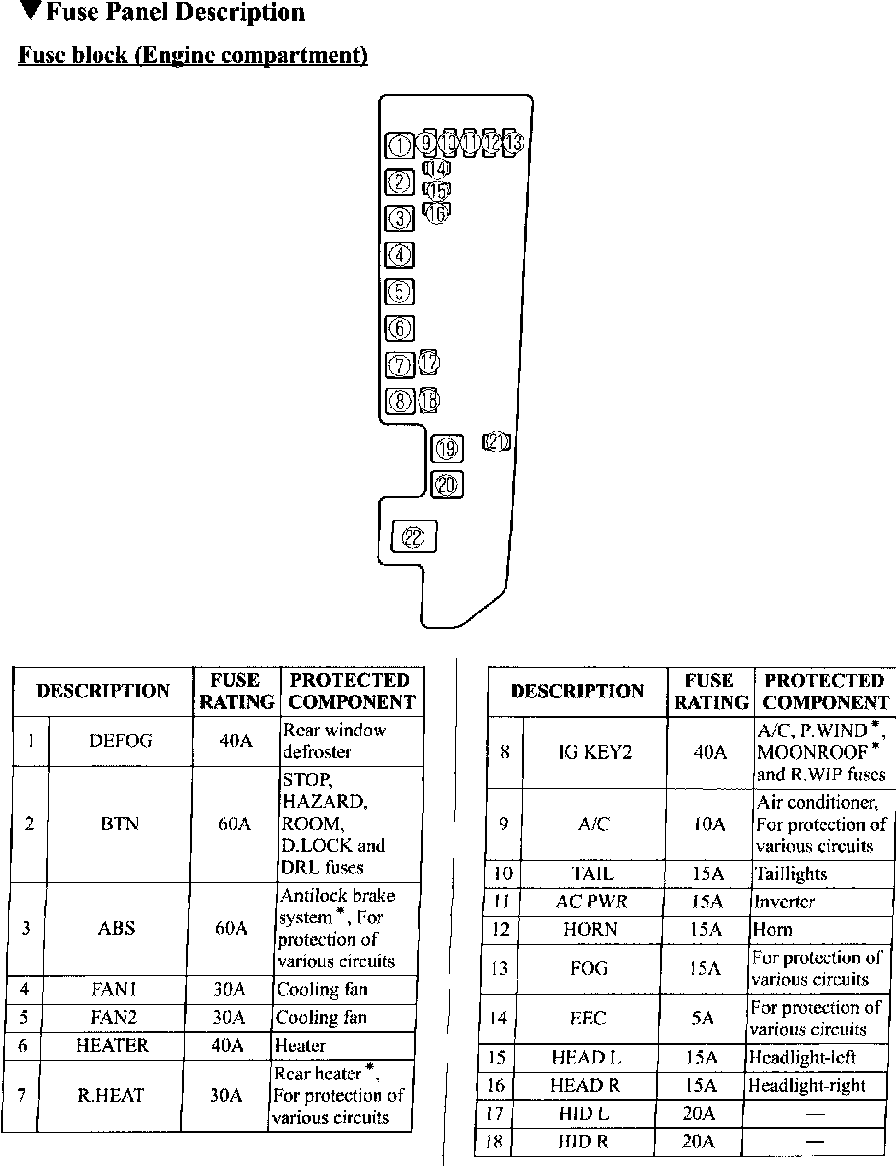

Fuse ID Engine Compartment
