Throttle Position Sensor: Testing and Inspection
THROTTLE POSITION (TP) SENSOR INSPECTIONNOTE: Perform the following test only when directed.
Resistance Inspection
1. Verify that the throttle valve is at CTP.
2. Inspect accelerator cable free play.

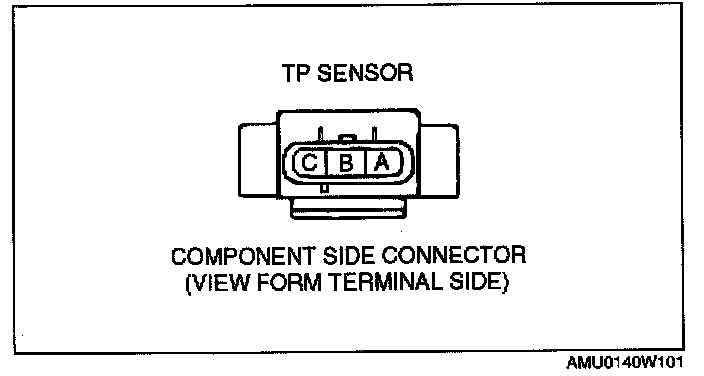

3. Measuring the resistance between TP sensor terminals A and C using an ohmmeter.
- If not as specified, replace the TP sensor.
- If as specified, but PID value or PCM terminal 40 voltage are out of specification, perform the "Circuit Open/Short Inspection".
Specification: 3.2 - 4.8 kOhms
Circuit Open/Short Inspection
1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION.)

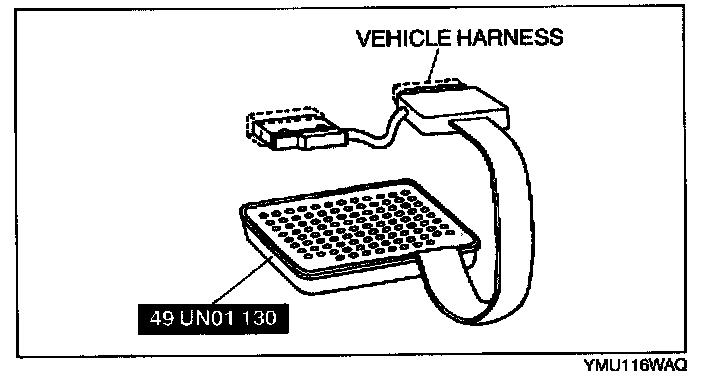

2. Connect the SST (104 Pin Breakout Box) with the PCM disconnected.
3. Tighten the connector attaching bolt.
Tightening torque: 3.0 - 5.4 N.m {30 - 56 kgf.cm, 27 - 48 in.lbf}
4. Check the following wiring harness for open or short circuit (Continuity check).
Open circuit
- If there is no continuity, the circuit is open. Repair or replace the harness.

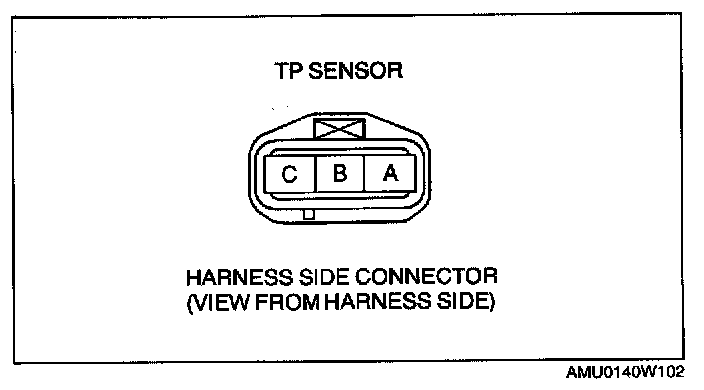

- TP sensor terminal A (harness-side) and 104 pin breakout box terminal 20
- TP sensor terminal B (harness-side) and 104 pin breakout box terminal 40
- TP sensor terminal C (harness-side) and 104 pin breakout box terminal 33
Short circuit
- If there is continuity, the circuit is shorted. Repair or replace the harness.
- TP sensor terminal A (harness-side) and power supply
- TP sensor terminal B (harness-side) and power supply
- TP sensor terminal B (harness-side) and body ground
- TP sensor terminal C (harness-side) and power supply
- TP sensor terminal C (harness-side) and body ground
