Component Tests and General Diagnostics

1. Disconnect the fuel pump relay.
2. Verify that each high-tension lead and connector is connected properly.

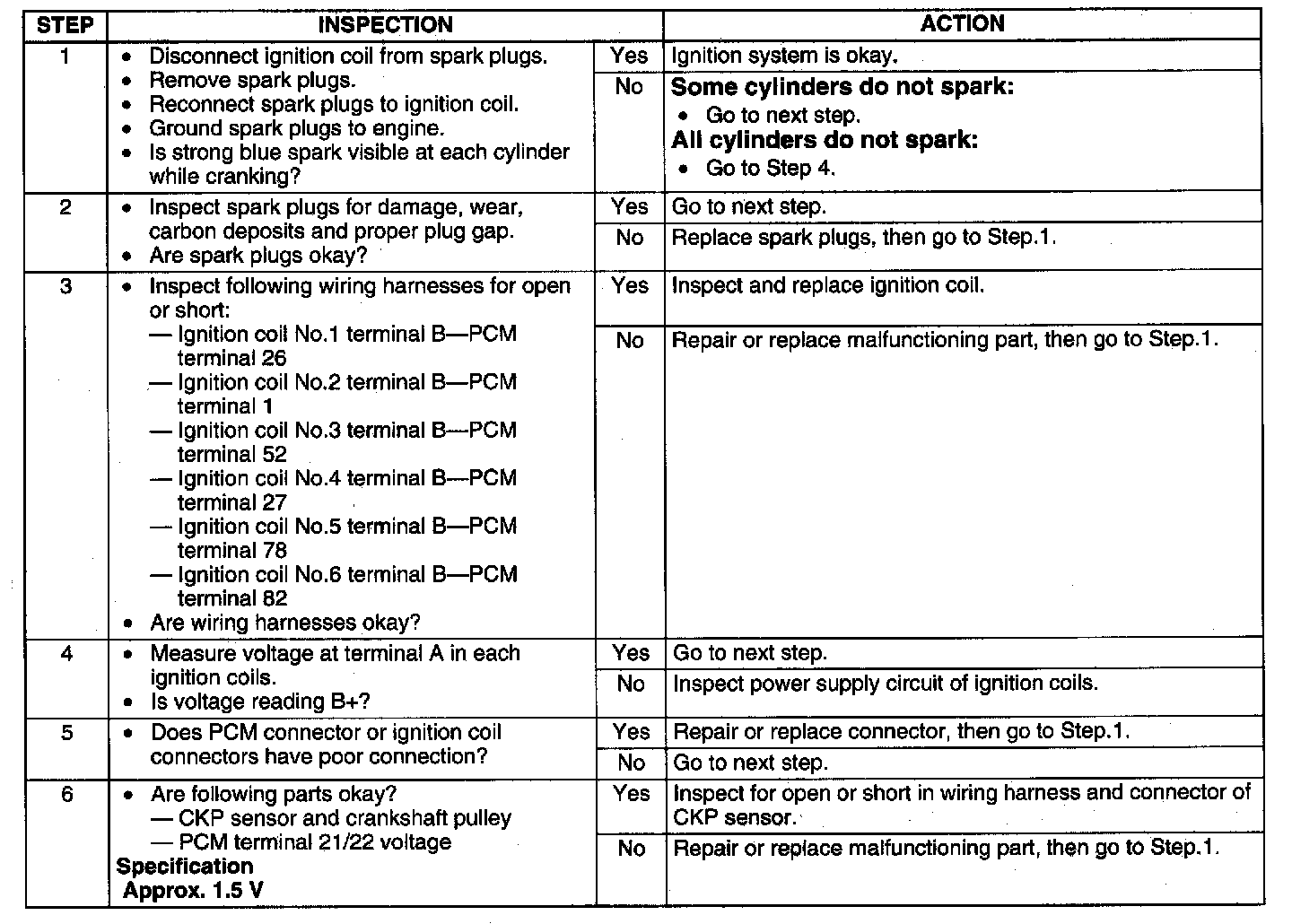

Step 1 - 6:

3. Inspect the ignition system given in the procedure.

WARNING: High voltage in the ignition system can cause strong electrical shock which can result in serious injury. Avoid direct contact to the vehicle body during the following spark test.
