Power Sliding Door Module: Testing and Inspection
EASY CLOSURE CONTROL MODULE INSPECTION 1.
Remove the easy closure control module.
2.

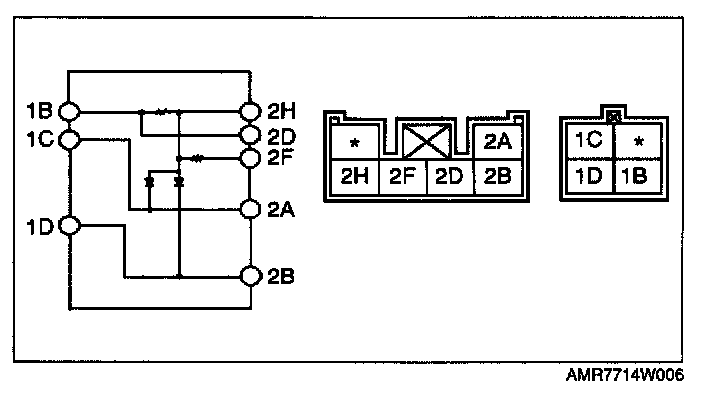

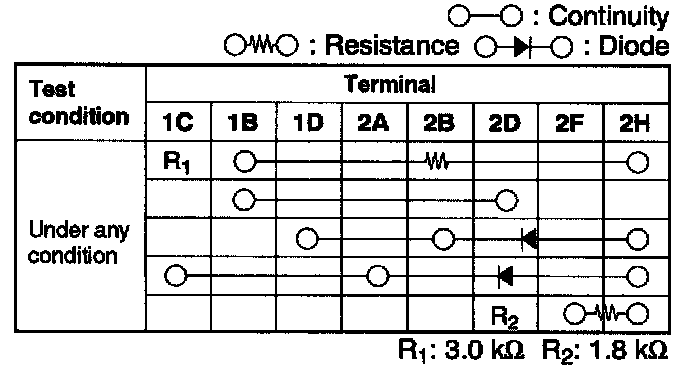

Inspect for continuity between the latch position switch terminals using an ohmmeter.
-
If not as specified, replace the easy closure control module.
