Air Bag Control Module: Testing and Inspection

SAS CONTROL MODULE CONFIGURATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

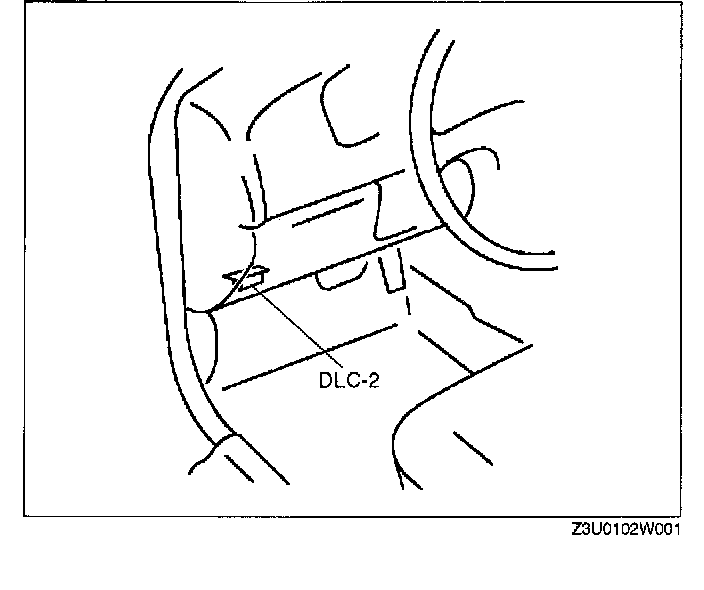

1. Connect the WDS or equivalent to the DLC-2 (16-pin).
2. Select "Module programming" from the menu.
3. Select "Programmable Module Installation".
4. Select the following items and perform procedure according to the directions on the WDS screen.

Item
"RCM"
