Fluid - Differential: Service and Repair

DIFFERENTIAL OIL REPLACEMENT

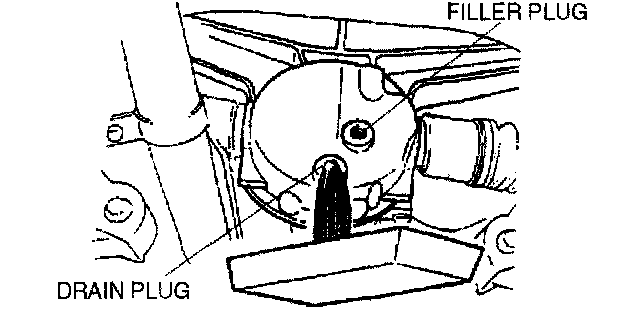

1. Remove the filler and drain plugs.
2. Drain the differential oil into a container.
3. Wipe the plugs clean.
4. Install the drain plug and a new washer.
Tightening torque 39.2 - 53.9 Nm (4.00 - 5.49 kgf-m, 29.0 - 39.7 ft. lbs.)
5. Add the specified oil from the filler plug until the level reaches the brim of the plug hole.
Specified oil
Type: API service GL-5 SAE 90
Capacity (Approximate quantity) BP with TC: 0.7 - 0.9 Liters (0.8 - 0.9 US quarts, 0.62 - 0.79 Imp quarts)
BP: 1.0 Liters (1.1 US quarts, 0.9 Imp quarts)
6. Install the filler plug.
Tightening torque 39.2 - 53.9 Nm (4.00 - 5.49 kgf-m, 29.0 - 39.7 ft. lbs.)
