Fluid - Differential: Testing and Inspection

DIFFERENTIAL OIL INSPECTION

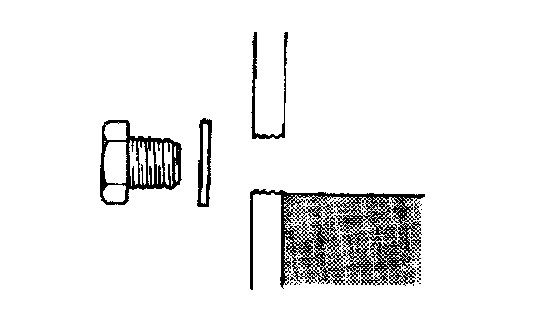

1. Remove the filler plug.
2. Verify that the oil is at the brim of the filler plug hole.
^ If it is low, add the specified oil.

3. Install the filler plug.
Tightening torque 40 - 53 Nm (4.0 - 5.5 kgf-m, 29 - 39 ft. lbs.)
