System Schematic Diagrams

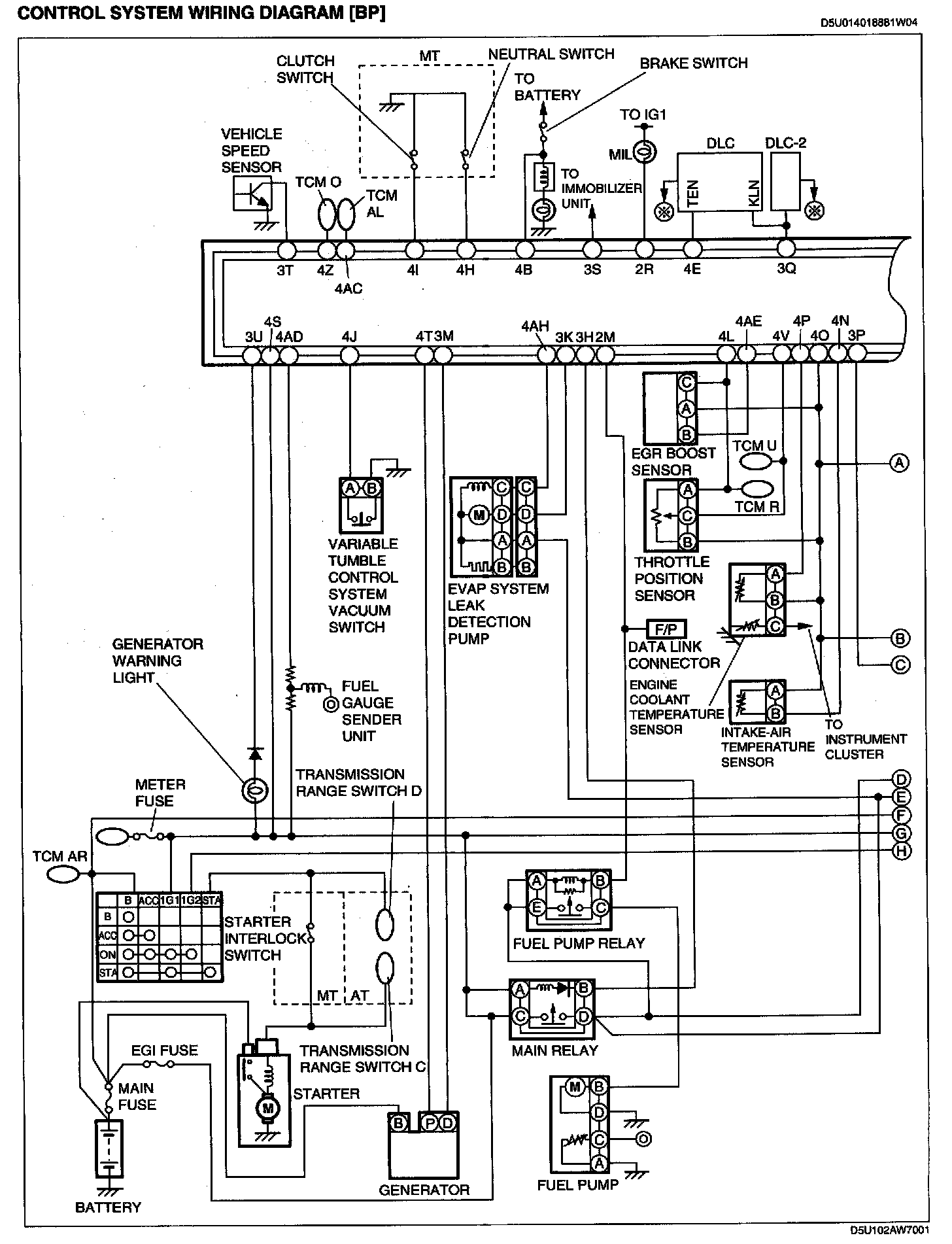

Control System Wiring Diagram [BP]:



Control System Wiring Diagram [BP]:
